ATORN boring bar, positive, with internal cooling A25R SVUBR 16

ATORN boring bar, positive, with internal cooling A25R SVUBR 16

ATORN boring bar, positive, with internal cooling A25R SVUBR 16
Item no: 1018513 702

Online price:

Available in 4-6 working days.

Application
For longitudinal and copy turning with VB indexable insert 35°

Execution

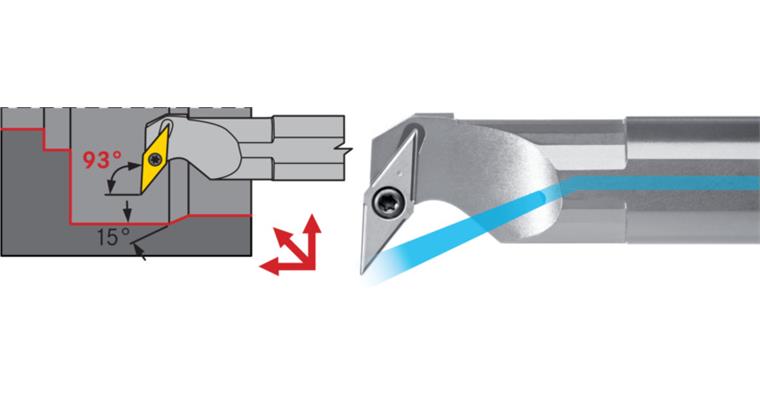

Precision-made boring bar, steel, with internal cooling, type V, attack angle 93°, tip angle 35°, clearance angle 5°

Advantage
  • very slim geometry, optimised for contour turning work
  • positive body geometry ensures low cutting forces


Brand: ATORN
ISO name: A25R SVUB R/L 16
Min. bore diameter (D min.): 32 mm
Shank diameter (d): 25 mm
Clearance length (l2): 25,5 mm
Length (l1): 200 mm
Clamping surface height (h): 23 mm
Suitable for indexable inserts (ISO): VB.. 1604..
Tool design: Right
DIN: 8024

ATORN-No.: 12232508

EAN no.: 4050293562507

Product Datasheet
