ATORN STFC boring bar, HSS, positive, right, AH 12 M STFC R/L 11

ATORN STFC boring bar, HSS, positive, right, AH 12 M STFC R/L 11

ATORN STFC boring bar, HSS, positive, right, AH 12 M STFC R/L 11
Item no: 1018490 209

Online price:

Available in 4-6 working days.

Application

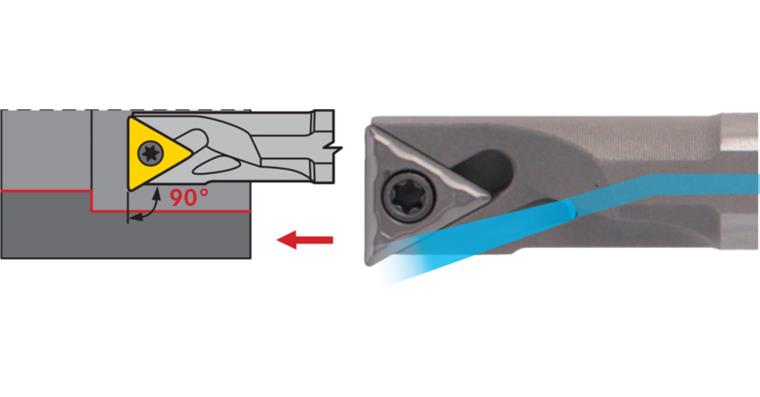

For longitudinal and copy turning with TC indexable insert 60°.

Execution
Precision-made boring bar, HSS, with internal cooling, type T, attack angle 90°, tip angle 60°, clearance angle 7°

Advantage
  • Three-cutter geometry reduces the costs per cutter
  • Positive body geometry ensures low cutting forces
  • Very high rigidity and very good cut quality due to HSS base material


Brand: ATORN
ISO name: AH 12 M STFC R/L 11
Min. bore diameter (D min.): 14 mm
Shank diameter (d): 12 mm
Cutting edge height (h1): 5,5 mm
Clearance length (l2): 20 mm
Length (l1): 150 mm
Clamping surface height (h): 11 mm
Programming size (f): 9 mm
Suitable for indexable inserts (ISO): TC.. 1102..
Tool design: Right
DIN: 8024

ATORN-No.: 11111296

EAN no.: 4050293347531

Product Datasheet
