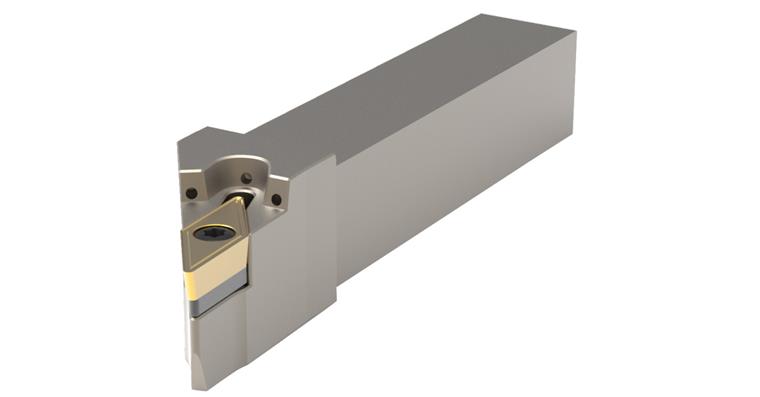

LIZZARD Halter SVJBR 2020 K16A IK lang für Wendeschneidplatte VB.. 1604

LIZZARD Halter SVJBR 2020 K16A IK lang für Wendeschneidplatte VB.. 1604

LIZZARD Halter SVJBR 2020 K16A IK lang für Wendeschneidplatte VB.. 1604
Item no: 1018395 660

Online price:

Available in 8-10 working days.

Application
For copy and longitudinal turning and facing with 35° VC indexable insert.

Execution
  • Precision-manufactured steel support with high-performance internal cooling system, hardened, shape V, pitch angle 93°, tip angle 35°, clearance angle 7°
  • With internal cooling feed on the cutting edge

Advantage
  • High-performance cooling channel system with three outlets ensures an extremely long service life and reliable processes
  • Very slim geometry, optimised for contour lathe work
  • Positive body geometry ensures low cutting forces
  • Excellent surface quality for medium infeed and finishing


EAN no.: 4024496171675

Product Datasheet
