Carbide cut. insert MINI-CUT right RS016.0130 circlip grooves HC8620/TiAlN

Carbide cut. insert MINI-CUT right RS016.0130 circlip grooves HC8620/TiAlN

Carbide cut. insert MINI-CUT right RS016.0130 circlip grooves HC8620/TiAlN
Item no: 1018340 123

Online price:

Available in 6-8 working days.

Application
For circlip grooves.

Execution
Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
f min./max.: 0.01-0.1 mm/U
Cutting material: Carbide
Machining direction: Right
Max. depth (t max.): 4,0 mm
Min. drill hole diameter (D min.): 16,0 mm
Programming size 1 (s): 5,4 mm
Programming size 2 (d): 11,0 mm
Programming size 3 (f): 10,2 mm
Suitable for material group H: 2
Suitable for material group K: 2
Suitable for material group M: 2
Suitable for material group N: 2
Suitable for material group P: 2
Suitable for material group S: 2
Type description (für Klemmhalter Typ): 616
Width of cutting edge (b + 0,03): 1,40 mm

Manufacturer part no.: RS016.0130/AL41F

EAN no.: 4050293292411

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • VHM HSC Schaftfräser Dia.HC mit Nutfräserspitze Verzahnung fein Ø 12,0 mm
  •
    Carbide cut. insert MINI-CUT right RS011.0070 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS014.0110 circlip grooves HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT left LS16.022R11 full radius HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT left LS16.040R20 full radius HC8620/TiAlN
  •
    Carbide hooked lathe chisel right P20 10 Q 10 x 10 x 140 mm
  •
    Carbide hooked lathe chisel right P20 20 Q 20 x 20 x 210 mm
  •
    Carbide hooked lathe chisel right K10 12 Q 12 x 12 x 160 mm
  •
    Carbide hooked lathe chisel right K10 16 Q 16 x 16 x 180 mm
  •
    Carbide hooked lathe chisel right K10 20 Q 20 x 20 x 210 mm
  •
    Hinged door 1 piece cabinet width 705mm useful height 700mm RAL 5012
  •

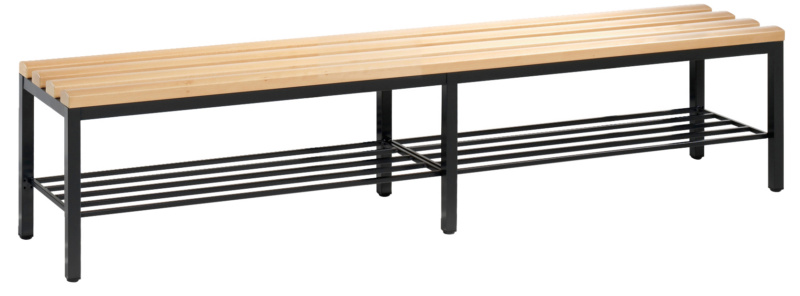

    Free-standing bench seat 6 feet with shoe rack HxWxD 420x1960x353 mm
