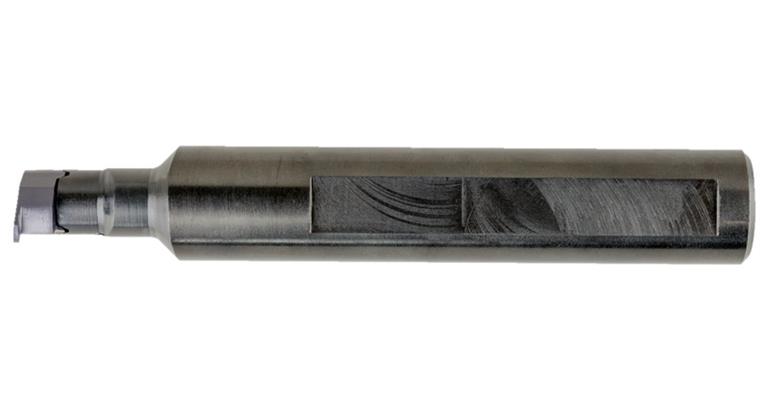

Steel insert holder short MINI-CUT616.0016.3 ST D16 mm f. cut. inserts R/LS16

Steel insert holder short MINI-CUT616.0016.3 ST D16 mm f. cut. inserts R/LS16

Steel insert holder short MINI-CUT616.0016.3 ST D16 mm f. cut. inserts R/LS16
Item no: 1018336 104

Online price:

Available in 6-8 working days.

Application
For recess turning, extracting and thread cutting (internal) from diameter 7.8 mm.

Execution
With internal cooling


Brand: DUEMMEL
Clearance diameter (d1): 11 mm
Clearance length (l2): 22 mm
Coolant supply: Internal
Cutting material: Steel
Length (l1): 100 mm
Machining direction: Neutral
Material: Steel
Materials group: N (secondary application) | P (primary application) | S (primary application) | H (secondary application) | K (primary application) | M (primary application)
Max. depth (t max.): 4,3 mm
Min. drill hole diameter (d min.): 16 mm
Programming size (a): 15,7 mm
Programming size 2 (h): 14,5 mm
Programming size 3 (f): 10,2 mm
Shank diameter (Ø dg6): 16 mm

Manufacturer part no.: 616.0016.3ST

EAN no.: 4050293274073

Product Datasheet
