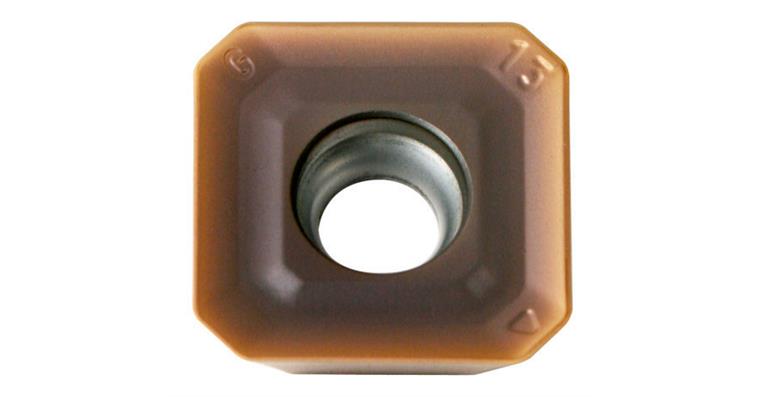

LIZZARD Fräswendeplatte SEHT 13T3 M HCU 30-M

LIZZARD Fräswendeplatte SEHT 13T3 M HCU 30-M

LIZZARD Fräswendeplatte SEHT 13T3 M HCU 30-M
Item no: 1017838 502

Online price:

Available in 5-7 working days.

Application
For milling


Brand: LIZZARD
Cutting material: Carbide
Inner circle diameter (d): 13,4 mm
Knife edge length (l): 13,4 mm
Mounting bore diameter (d1): 4,1 mm
Thickness of indexable insert (s): 3,97 mm
Carbide type: HCU30M
Coating: CVD
Materials group: P (primary application) | M (primary application) | K (primary application)
Carbide type ISO: P25 | P40 | M20 | M40 | K20 | K40
Min./max. Vc in steel: 110-220 m/min
min./max. ap steel: 0.5-5.0 mm
Min./max. Vc in stainless steel: 90-160 m/min
min./max. ap stainless steel: 0.5-5.0 mm
Min./max. Vc in cast iron: 120-200 m/min
min./max. ap cast: 0.5-5.0 mm
Number of pieces per packet: 10 PCS

EAN no.: 4024496177844

Product Datasheet
