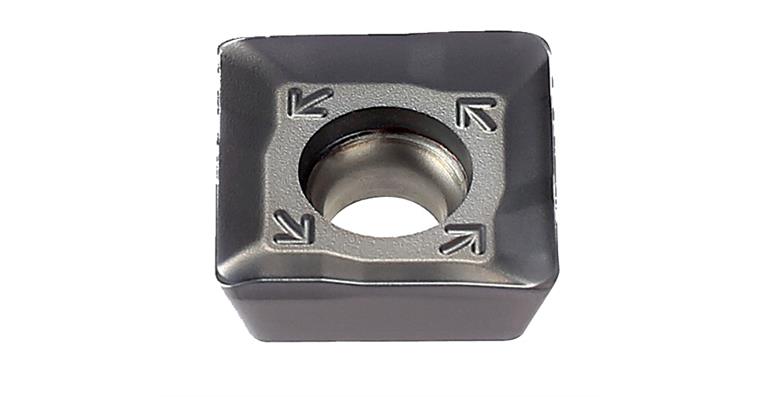

Ind. milling ins. SDMT1205PDR6 coated f ang. milling cttr cat. no. 17742 100-105

Ind. milling ins. SDMT1205PDR6 coated f ang. milling cttr cat. no. 17742 100-105

Ind. milling ins. SDMT1205PDR6 coated f ang. milling cttr cat. no. 17742 100-105
Item no: 1017833 101

Online price:

Available for immediate delivery

Execution
  • Square
  • Positive 15°


Material to be processed: Steel | Cast metal
Brand: ATORN
ISO name: SDMT 1205 PDR69
Surface: TiAlN
Cutting material: Carbide
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: D
Tolerance class of indexable insert ISO: M
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 05
Inner circle diameter (IC): 12,7 mm
Knife edge length (L): 12,7 mm
Mounting bore diameter (D1): 4,4 mm
Thickness of indexable insert (S): 5,56 mm
Carbide type: HC4635
Coating: PVD
Materials group: S (primary application) | M (primary application) | K (primary application)
Carbide type ISO: P30 | P40 | M30 | M40 | K30 | K40
Min./max. Vc in steel: 110-220 m/min
Min./max. Vc in stainless steel: 70-130 m/min
Min./max. Vc in cast iron: 120-230 m/min
Number of pieces per packet: 10 PCS
Cutting speed (steel 1000) suitability: 1
Cutting speed (steel 1000) Vc: 140 m/min
Cutting speed (steel 1300) suitability: 1
Cutting speed (steel 1300) Vc: 100 m/min
Cutting speed (steel 700) suitability: 1
Cutting speed (steel 700) Vc: 180 m/min

EAN no.: 4050293111446

Product Datasheet
