ATORN angular milling cutter, 90 degrees, with internal cooling, 40.0 mm T=3

ATORN angular milling cutter, 90 degrees, with internal cooling, 40.0 mm T=3

ATORN angular milling cutter, 90 degrees, with internal cooling, 40.0 mm T=3
Item no: 1017753 098

Online price:

Available in 4-6 working days.

Application
For universal rough cutting in all materials.

Execution
  • Robust support design for high-performance milling
  • With internal cooling
  • Clamping screw tightening torque (indexable insert) M2.5 = 1.2 Nm


Brand: ATORN

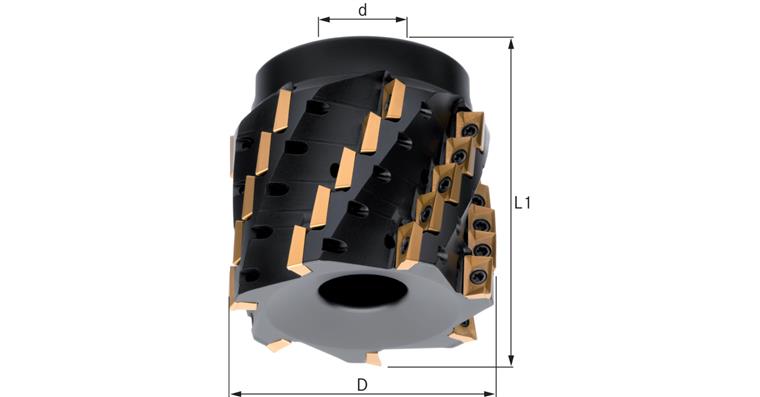

Cutting edge diameter (D): 40 mm
Length (L1): 50 mm
Bore diameter (d): 16 mm
max. ap: 37 mm
Number of cutting edges: 3 PCS
Number of cutting inserts (WSP Gesamt): 12 PCS
Suitable indexable insert no. (WSP Typ): 21

ATORN-No.: 11119041

EAN no.: 4050293114089

Product Datasheet
