Material to be processed: Steel | Stainless steel | Cast metal
Brand: LIZZARD

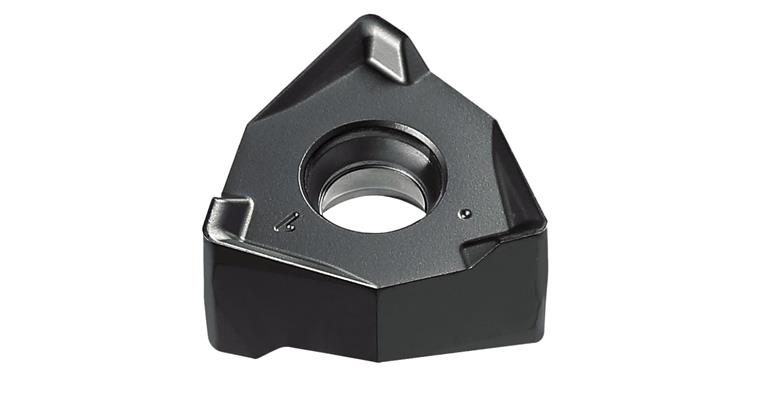

ISO name: WNMU 080608-MB
Surface: TiAlN multilayer coating
Cutting material: Carbide
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: U
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 08
Inner circle diameter (IC): 12,5 mm
Knife edge length (L): 7,5 mm
Mounting bore diameter (D1): 4,6 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 6,56 mm
Carbide type: HPU35M
Coating: CVD
Materials group: P (primary application) | M (primary application) | K (primary application)
Carbide type ISO: P25 | P40 | M20 | M40 | K20 | K40
Min./max. Vc in steel: 110-200 m/min
Min./max. Vc in stainless steel: 50-120 m/min
Min./max. Vc in cast iron: 120-200 m/min
min./max. ap: 0.5-6.0 mm
f min./max.: 0.1-0.3 mm/U
Number of pieces per packet: 10 PCS

EAN no.: 4024496173310
