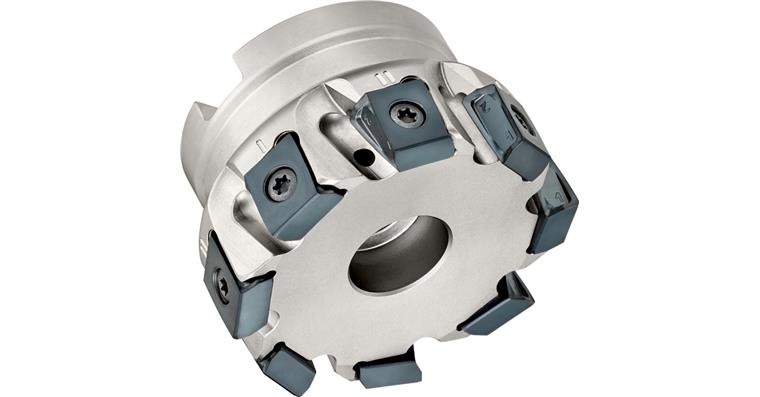

ATORN 90° angular milling cutter tangential diameter 80.0 mm teeth 10, 4-way

ATORN 90° angular milling cutter tangential diameter 80.0 mm teeth 10, 4-way

ATORN 90° angular milling cutter tangential diameter 80.0 mm teeth 10, 4-way
Item no: 1017556 106

Online price:

Available in 5-7 working days.

Application
Milling tool with tangentially arranged indexable inserts and 4 usable cutting edges.

Execution
  • Wear-proof, nickel-plated design
  • With internal cooling

Advantage
Cutting depth down to 11.5 mm


Brand: ATORN
Cutting edge diameter (D): 80 mm
Length (L1): 50 mm
Bore diameter (d): 27 mm
max. ap: 11,5 mm
Number of cutting edges: 10 PCS

ATORN-No.: 10617468

EAN no.: 4050293434309

Product Datasheet
