Material to be processed: Steel | Stainless steel | Cast metal
Brand: LIZZARD

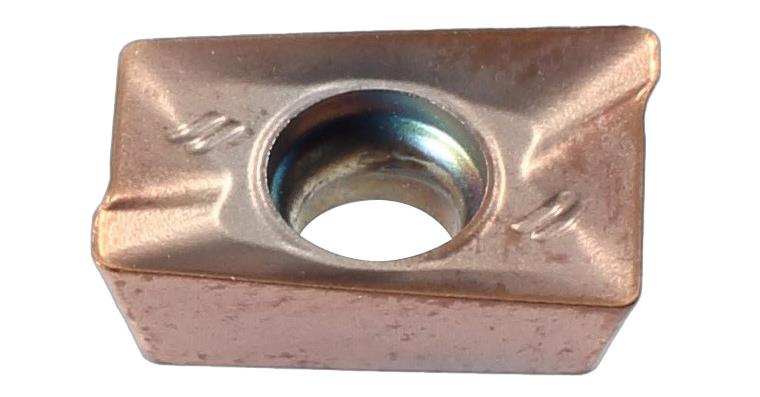

ISO name: APKT 1604 PDR-M
Surface: TiAlN multilayer coating
Cutting material: Carbide
Shape of indexable insert ISO: A
Clearance angle of indexable insert ISO: P
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 09
Inner circle diameter (IC): 9,5 mm
Knife edge length (L): 16,0 mm
Mounting bore diameter (D1): 4,4 mm
Corner radius (RE): 0,9 mm
Thickness of indexable insert (S): 4,76 mm
Carbide type: HPU35M
Coating: PVD
Materials group: P (primary application) | M (primary application) | K (primary application)
Carbide type ISO: P25 | P40 | M20 | M40 | K20 | K40
Min./max. Vc in steel: 100-170 m/min
Min./max. Vc in stainless steel: 70-130 m/min
Min./max. Vc in cast iron: 120-230 m/min
Number of pieces per packet: 10 PCS

EAN no.: 4024496173303
