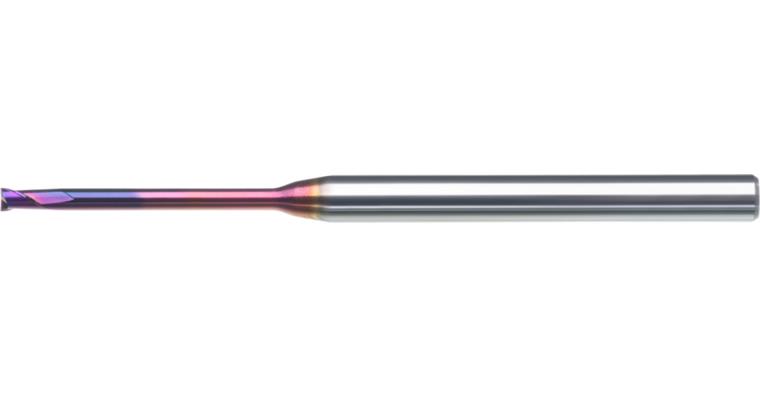

ATORN RockTec PRO mini end mill, long neck 2x3x30x70 mm T=2 HA

ATORN RockTec PRO mini end mill, long neck 2x3x30x70 mm T=2 HA

ATORN RockTec PRO mini end mill, long neck 2x3x30x70 mm T=2 HA
Item no: 1016802 599

Online price:

Still in stock: 1

Application
Mini end mill with a long neck for machining materials up to 65 HRC, e.g. in die and mould making.

Execution
  • Ultra Micro fine grain cutting material
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • with clearance
  • Type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • optimised geometry for machining hard materials
  • maximum service life due to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 2 mm
Cutting edge length: 3 mm
Clearance length: 30 mm
Length: 70 mm
Clearance diameter: 1,91 mm
Shank diameter: 4 mm
fz hard 65 HRC: 0,019 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264764

EAN no.: 4066107033156

Product Datasheet Datasheet cutting values
