ATORN SC mini torus milling cutter, long, Ø 1.0 x 1.5 x 10 x 50 mm r0.1 T2 RT65

ATORN SC mini torus milling cutter, long, Ø 1.0 x 1.5 x 10 x 50 mm r0.1 T2 RT65

ATORN SC mini torus milling cutter, long, Ø 1.0 x 1.5 x 10 x 50 mm r0.1 T2 RT65
Item no: 1016802 327

Online price:

Available in 8-10 working days.

Application
Torus milling cutter with long neck for machining materials up to 65 HRC, e.g. for countersinking and mould making.

Execution
  • solid carbide ultra-fine grain
  • cutting edge finish
  • HA shank in accordance with DIN 6535
  • with clearance
  • type H
  • -5° -7° chip angle
  • RockTec 65 coated
  • cutting tolerance dia. 0.2-0.7 mm = 0/-0.012 mm
  • cutting tolerance dia. 0.7-3.0 mm = 0/-0.020 mm
  • radius tolerance = 0/-0.010 mm

Advantage
  • optimum chip removal and temperature resistance
  • maximum service life thanks to RockTec 65 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 1 mm
Cutting edge length: 1,5 mm
Clearance length: 10 mm
Length: 50 mm
Clearance diameter: 0,95 mm
Shank diameter: 4 mm
Edge radius: 0,1 mm
fz hard 52 HRC: 0,01 mm

ATORN-No.: 11860490

EAN no.: 4050293197600

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Tool eyelet D-ring with cable loop load capacity max. 2.3 kg length 8.9 cm
  •

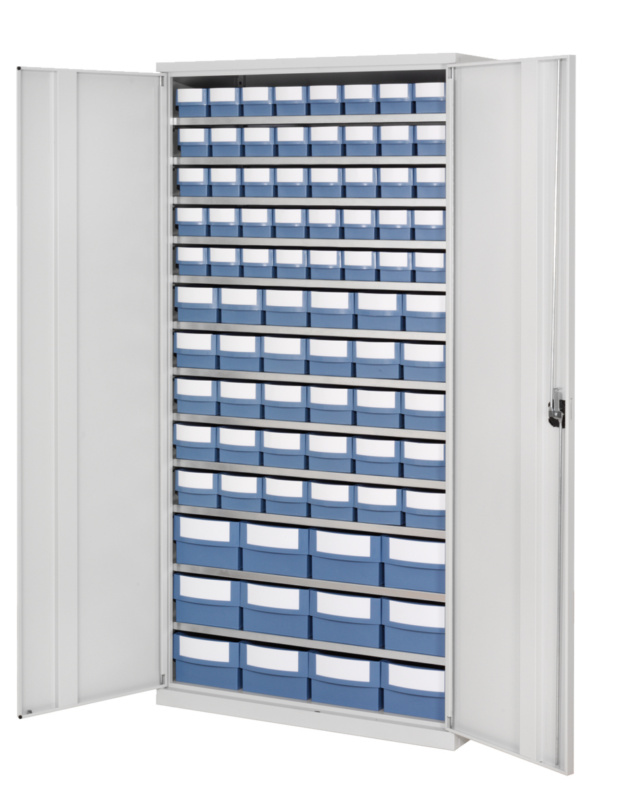

    Storage cabinet H1950xW1000xD500 mm including 82 boxes RAL 7035
  •
