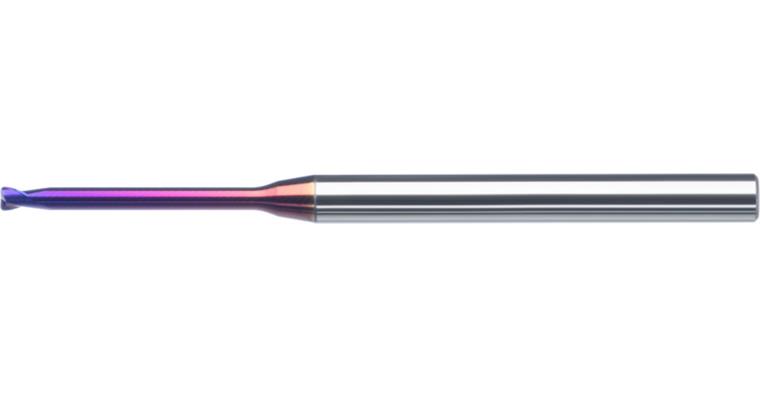

ATORN SC mini torus mill cttr TiAlSiN 2x2x50 mm clearance 1.91x10 mm R 0.2 mm

ATORN SC mini torus mill cttr TiAlSiN 2x2x50 mm clearance 1.91x10 mm R 0.2 mm

ATORN SC mini torus mill cttr TiAlSiN 2x2x50 mm clearance 1.91x10 mm R 0.2 mm
Item no: 1016784 196

Online price:

Available in 6-8 working days.

Application
Torus milling cutter with long neck for machining materials up to 65 HRC, e.g. for countersinking and mould making.

Execution
  • Cutting material, Ultra Micro fine grain
  • cutting edge finish
  • HA shaft in line with DIN 6535
  • Clearance
  • type H
  • With RockTec PRO coating
  • Radius tolerance = +/- 0.0025 mm

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 2 mm
Cutting edge length: 2 mm
Clearance length: 10 mm
Length: 50 mm
Clearance diameter: 1,91 mm
Shank diameter: 4 mm
Edge radius: 0,2 mm
fz hard 65 HRC: 0,019 mm

ATORN-No.: 11264183

EAN no.: 4050293654127

Product Datasheet Datasheet cutting values
