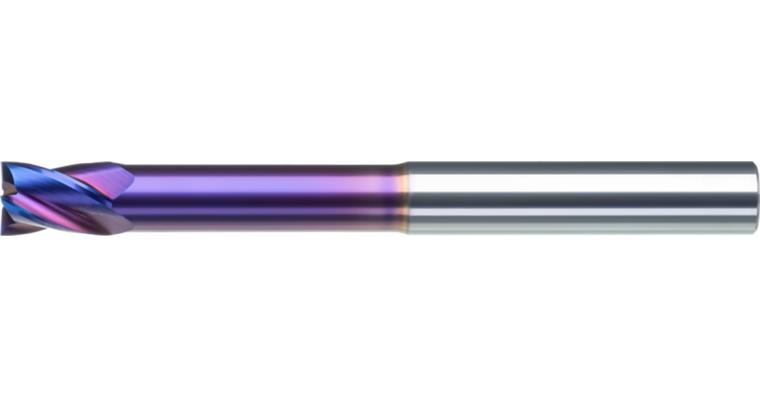

ATORN RockTec PRO end mill, long 20x26x72x125 mm T=4 HA

ATORN RockTec PRO end mill, long 20x26x72x125 mm T=4 HA

ATORN RockTec PRO end mill, long 20x26x72x125 mm T=4 HA
Item no: 1016781 320

Online price:

Still in stock: 5

Application
End mill in long version for machining materials up to 65 HRC, e.g. in die and mould making.

Execution
  • Ultra Micro fine grain cutting material
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • with clearance
  • Type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • optimised geometry for machining hard materials
  • maximum service life due to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 20 mm
Cutting edge length: 26 mm
Clearance length: 72 mm
Length: 125 mm
Clearance diameter: 19 mm
Shank diameter: 20 mm
fz hard 65 HRC: 0,117 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264600

EAN no.: 4066107031510

Product Datasheet Datasheet cutting values
