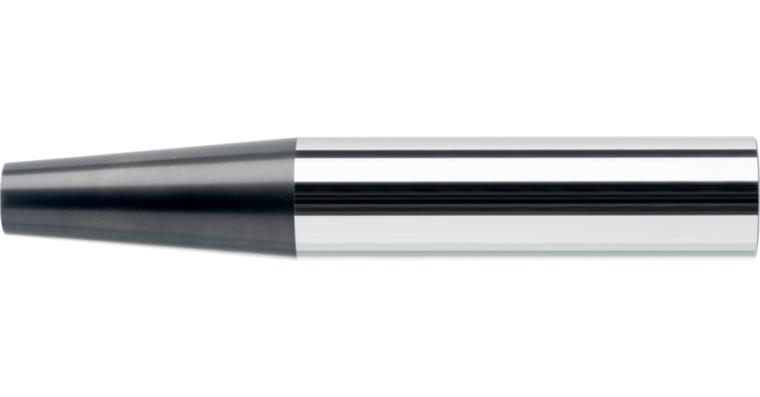

ATORN tapered interch. head holder 20 x 113 mm steel a=1° head size 30 HA shank

ATORN tapered interch. head holder 20 x 113 mm steel a=1° head size 30 HA shank

ATORN tapered interch. head holder 20 x 113 mm steel a=1° head size 30 HA shank
Item no: 1016761 203

Online price:

Available in 4-6 working days.

Application
The large interchangeable head system is tailored to meet the requirements of users in the high-performance sector and ensures high process stability and profitability.

Execution
  • Steel shank
  • Tapered neck
  • Concentricity less than 20 µm
  • HA shank
  • Shank tolerance h6

Advantage
  • Short setup times
  • High stability and rigidity
  • Low-vibration
  • Guaranteed repetitive accuracy

Delivery
Avec clé de montage

Notes
Installation: Clean the interface on the head and holder. Screw the milling head into the holder hand tight. Tighten the milling head to the prescribed torques. CAUTION Risk of injury! - Use gloves when assembling!

Brand: ATORN
Clearance length: 48 mm
Clearance diameter: 11,6 mm
Length: 103 mm
Shank diameter: 20 mm
Replaceable head system: WKS 30

ATORN-No.: 12040453

EAN no.: 4050293407167

Product Datasheet
