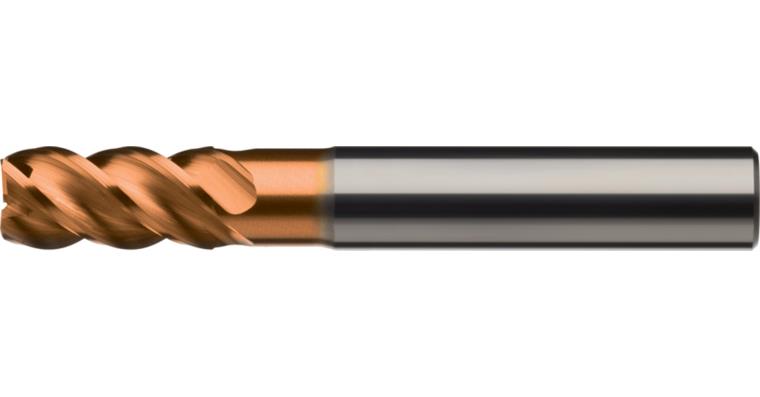

ATORN solid carbide end mill T4 HPC HA, 5.0 x 10 x 16 x 57 mm, coated

ATORN solid carbide end mill T4 HPC HA, 5.0 x 10 x 16 x 57 mm, coated

ATORN solid carbide end mill T4 HPC HA, 5.0 x 10 x 16 x 57 mm, coated
Item no: 1016741 103

Online price:

Available in 6-8 working days.

Application
HPC end mill with uneven twist and uneven pitch for rough and finish machining of non-ferrous metals.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HA
  • with edge protection chamfer
  • defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • uneven 35°/38° twist angle
  • ZrCN ULTRA-N coated

Advantage
  • extremely quiet running
  • reduces vibrations
  • higher feeds and cutting depths possible
  • ideal for static and dynamic trochoidal milling
  • defined edge rounding for maximum service life


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 5 mm
Cutting edge length: 10 mm
Clearance length: 16 mm
Length: 57 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 4,7 mm
Shank diameter: 6 mm
fz aluminium: 0,075 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263512

EAN no.: 4050293341904

Product Datasheet Datasheet cutting values
