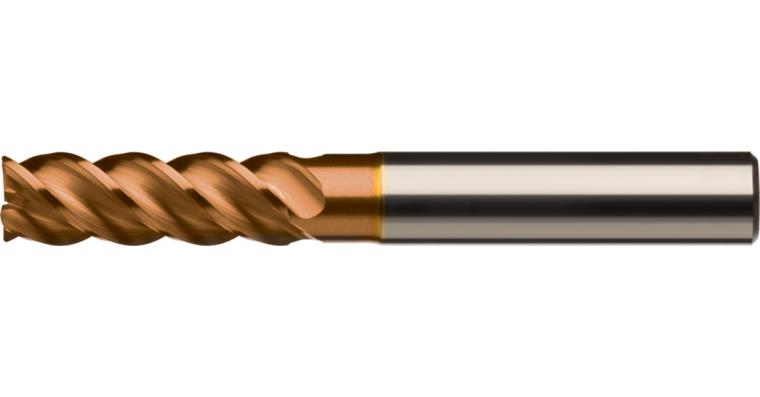

ATORN solid carbide end mill T4 long HA, 4.0 x 16 x 22 x 62 mm, coated

ATORN solid carbide end mill T4 long HA, 4.0 x 16 x 22 x 62 mm, coated

ATORN solid carbide end mill T4 long HA, 4.0 x 16 x 22 x 62 mm, coated
Item no: 1016739 101

Online price:

Available for immediate delivery

Application
End mill for universal machining of non-ferrous metals.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HA
  • with edge protection chamfer
  • defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • ZrCN ULTRA-N coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 4 mm
Cutting edge length: 16 mm
Clearance length: 22 mm
Length: 62 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 3,8 mm
Shank diameter: 6 mm
fz aluminium: 0,04 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263470

EAN no.: 4050293341768

Product Datasheet Datasheet cutting values
