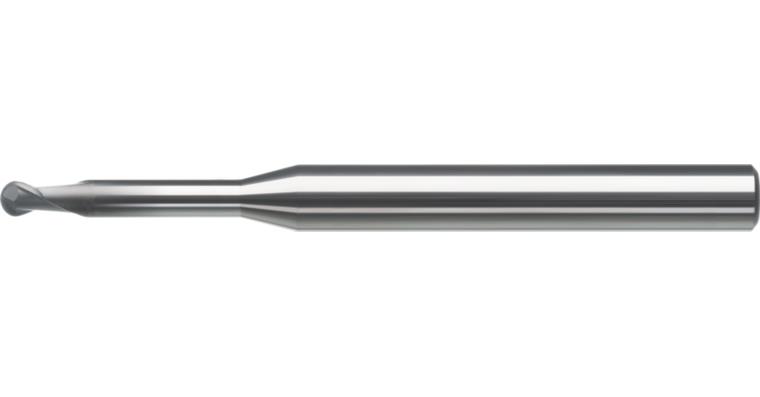

ATORN SC miniature ball nose end mill diameter 1.0x1x5x55 mm T2 HA 4 ULTRA DC

ATORN SC miniature ball nose end mill diameter 1.0x1x5x55 mm T2 HA 4 ULTRA DC

ATORN SC miniature ball nose end mill diameter 1.0x1x5x55 mm T2 HA 4 ULTRA DC
Item no: 1016704 119

Online price:

Available in 4-6 working days.

Application
High-precision miniature radius cutter with long neck for process-reliable machining of graphite, GFRP and CFRP.

Execution
  • High-tech CVD diamond coating
  • Coat thickness 10+2 µm
  • With clearance
  • Concentricity 0.005 mm

Advantage
  • Non-wearing, crystalline diamond coating
  • Optimised, highly accurate geometry


Brand: ATORN
Cutting material: SC
Surface: ULTRA DC
Type: N
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 1 mm
Cutting edge length: 1 mm
Clearance length: 5 mm
Length: 55 mm
Clearance diameter: 0,9 mm
Shank diameter: 4 mm
fz graphite: 0,01 mm

ATORN-No.: 12040252

EAN no.: 4050293404562

Product Datasheet Datasheet cutting values
