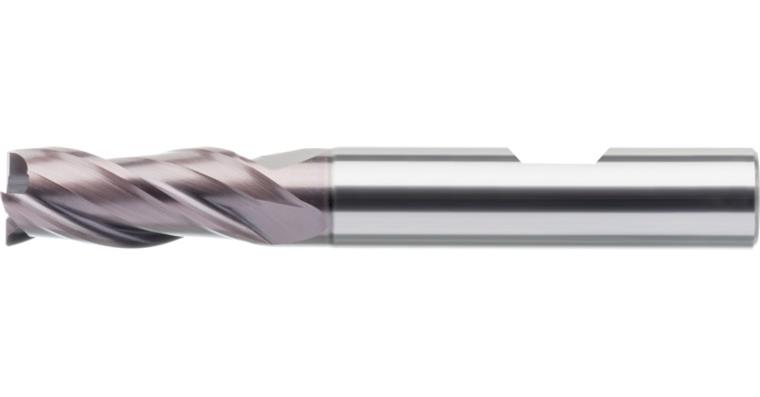

ATORN HPC POWER SC groove end mill, UNI, 20 x 38 x 54 x 104 mm HB, type N, long

ATORN HPC POWER SC groove end mill, UNI, 20 x 38 x 54 x 104 mm HB, type N, long

ATORN HPC POWER SC groove end mill, UNI, 20 x 38 x 54 x 104 mm HB, type N, long
Item no: 1016671 217

Online price:

Only while stocks last: 3

Application
HPC end mill for universal application, ideal for groove milling.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA high-performance coating
  • Centre cutting
  • Unequal twist angle 33°/35°/37°
  • Unequal cutting edge pitch
  • With edge protection chamfer
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High level of process reliability up to 2xD
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for groove milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 33° | 35° | 37°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Clearance length: 54 mm
Length: 104 mm
Edge protection chamfer length: 0,3 mm
Clearance diameter: 19 mm
Shank diameter: 20 mm
fz steel 1000: 0,2 mm
Overall stainless steel suitability: 2
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10617370

EAN no.: 4050293411478

Product Datasheet Datasheet cutting values
