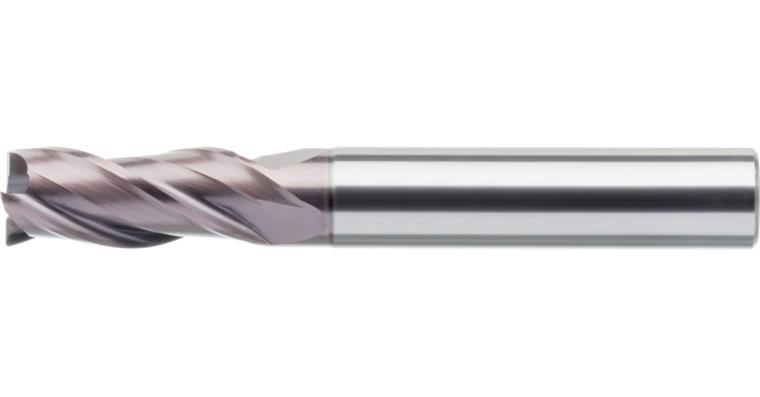

ATORN HPC POWER SC groove end mill, UNI, 14.0 x 26 x 38 x 83 mm HA, type N, long

ATORN HPC POWER SC groove end mill, UNI, 14.0 x 26 x 38 x 83 mm HA, type N, long

ATORN HPC POWER SC groove end mill, UNI, 14.0 x 26 x 38 x 83 mm HA, type N, long
Item no: 1016671 113

Online price:

Only while stocks last: 2

Application
HPC end mill for universal application, ideal for groove milling.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA high-performance coating
  • Centre cutting
  • Unequal twist angle 33°/35°/37°
  • Unequal cutting edge pitch
  • With edge protection chamfer
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High level of process reliability up to 2xD
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for groove milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 33° | 35° | 37°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 14 mm
Cutting edge length: 26 mm
Clearance length: 38 mm
Length: 83 mm
Edge protection chamfer length: 0,3 mm
Clearance diameter: 13 mm
Shank diameter: 14 mm
fz steel 1000: 0,16 mm
Overall stainless steel suitability: 2
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10617357

EAN no.: 4050293411348

Product Datasheet Datasheet cutting values
