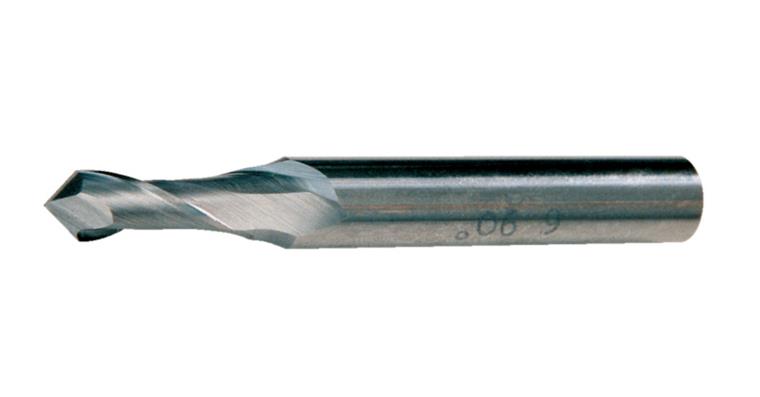

SC universal milling cutter cyl. type N short 2 cut. edges tip angle 90° 12 mm

SC universal milling cutter cyl. type N short 2 cut. edges tip angle 90° 12 mm

SC universal milling cutter cyl. type N short 2 cut. edges tip angle 90° 12 mm
Item no: 1016580 107

Online price:

Still in stock: 2

Application
A new concept for shank tools with a focus on versatility. It enables up to eight machining operations with one tool, such as centring, drilling, milling, chamfering, countersinking, V-groove milling, circumferential milling, face/circular milling.

Execution
Tip angle 90° (+/-1°)


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Length: 90 mm
Shank diameter: 12 mm
Number of cutting edges (Z): 2 PCS
Twist angle: 25°
Center cutting: Yes
Type: N
Construction length: Short
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,04 mm
