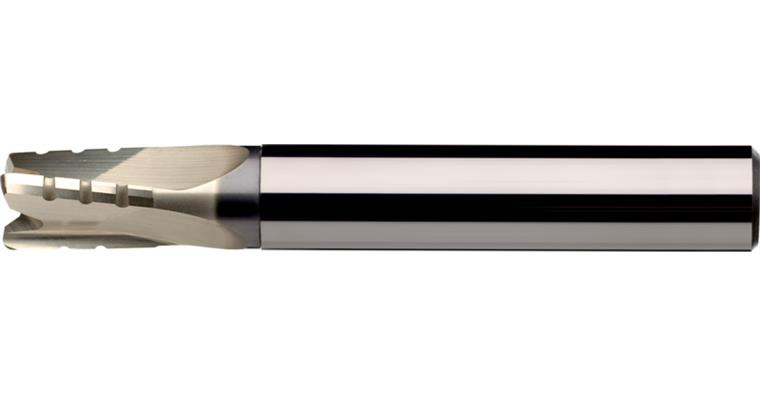

ATORN solid carbide HSC 3D roughing cutter, diameter 6.0x8x57 mm, T3, r=0.6 mm

ATORN solid carbide HSC 3D roughing cutter, diameter 6.0x8x57 mm, T3, r=0.6 mm

ATORN solid carbide HSC 3D roughing cutter, diameter 6.0x8x57 mm, T3, r=0.6 mm
Item no: 1016564 106

Online price:

Still in stock: 9

Application
For high-performance milling in aluminium with cutting values up to 1600 m/min.

Execution
  • Solid carbide ultra-fine grain
  • HA straight shank
  • With clearance
  • CALIDA Z high-performance coating (ZrCrN titanium-free)
  • Defined cutting edge rounding
  • Centre cutting
  • Reinforced core
  • Flat 7° twist

Advantage
  • Extremely stable high-performance geometry
  • Chip breaker for machining short chips
  • Fast and reliable chip removal
  • Also for long-chipping materials
  • Wear protection through corner radius (torus)

Notes
The tools should be shrunk-in. A stable machine and firmly clamped parts are important.

Brand: ATORN
Cutting material: SC
Surface: CALIDA Z
Type: WF
Number of cutting edges (Z): 3 PCS
Twist angle: 7°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 8 mm
Clearance length: 21 mm
Length: 57 mm
Clearance diameter: 5,8 mm
Shank diameter: 6 mm
Edge radius: 0,6 mm
fz aluminium: 0,21 mm

ATORN-No.: 11201147

EAN no.: 4050293200546

Product Datasheet Datasheet cutting values
