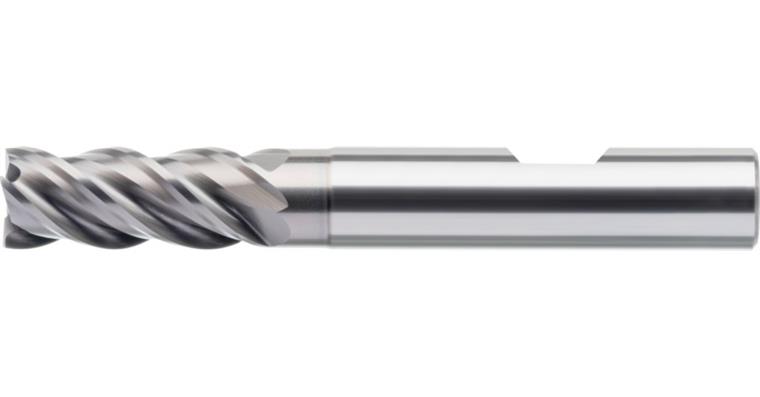

ATORN HPC POWER SC end mill, STAINLESS STEEL, 8.0 x 19 x 27 x 63 mm HB, VA long

ATORN HPC POWER SC end mill, STAINLESS STEEL, 8.0 x 19 x 27 x 63 mm HB, VA long

ATORN HPC POWER SC end mill, STAINLESS STEEL, 8.0 x 19 x 27 x 63 mm HB, VA long
Item no: 1016556 208

Online price:

Only while stocks last: 15

Application
HPC end mill for machining rust- and acid-proof steels and titanium and nickel-based alloys, optimal application in trochoidal milling and in edge, corner and groove machining.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA M high-performance coating
  • Centre cutting
  • Uneven twist angle: 41°/44°
  • Unequal cutting edge pitch
  • Optimised cutting edge design
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High process reliability owing to robust cutting edges
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for static and dynamic trochoidal milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA M
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 41° | 44°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 19 mm
Clearance length: 27 mm
Length: 63 mm
Clearance diameter: 7,7 mm
Shank diameter: 8 mm
fz stainless steel: 0,06 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 10617304

EAN no.: 4050293410815

Product Datasheet Datasheet cutting values
