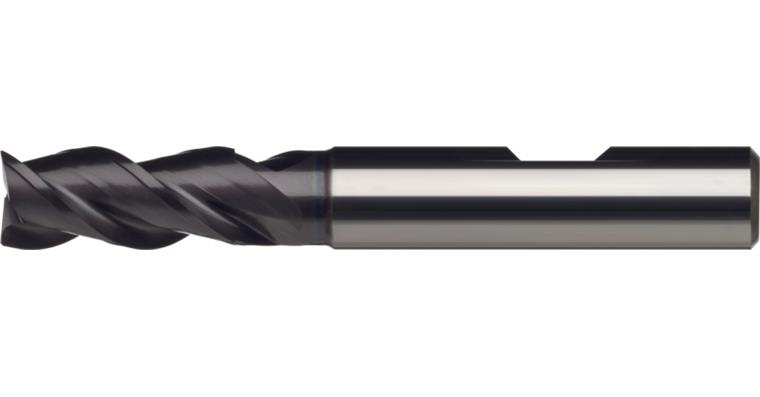

ATORN solid carbide end mill, diameter 5.0 mm, L1=57 mm, T=3, TiAlN, HB shaft

ATORN solid carbide end mill, diameter 5.0 mm, L1=57 mm, T=3, TiAlN, HB shaft

ATORN solid carbide end mill, diameter 5.0 mm, L1=57 mm, T=3, TiAlN, HB shaft
Item no: 1016535 305

Online price:

Still in stock: 2

Application
HPC end mill with unequal twist for roughing and finishing materials with a strength of up to 1400 N/mm²

Execution
  • Solid carbide ultra-fine grain
  • Straight shank pursuant to DIN 6535 HB
  • TiAIN-coated
  • Centre cutting
  • With edge protection chamfer
  • Unequal twist angle (41°, 43°, 45°)
  • With clearance

Advantage
  • Extremely smooth running
  • Reduces vibrations
  • Enables higher feed rates and greater cutting depths
  • Ideal for static and dynamic trochoidal milling
  • Defined edge rounding for extremely long service life


Brand: ATORN
Cutting material: SC
Surface: TiAlN
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 41° | 43° | 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 5 mm
Cutting edge length: 13 mm
Clearance length: 18 mm
Length: 57 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 4,7 mm
Shank diameter: 6 mm
fz steel 1000: 0,06 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 10480008

EAN no.: 4050293337631

Product Datasheet Datasheet cutting values
