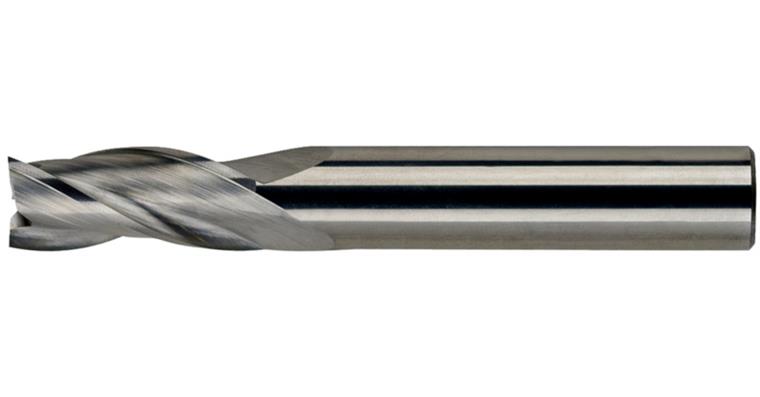

Solid carb. square end mill cyl./6535 HA short 3 cut. edges C-cut P20-K40 20 mm

Solid carb. square end mill cyl./6535 HA short 3 cut. edges C-cut P20-K40 20 mm

Solid carb. square end mill cyl./6535 HA short 3 cut. edges C-cut P20-K40 20 mm
Item no: 1016522 113

Online price:

Available in 6-8 working days.

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
Centre cutting


Brand: LIZZARD
Material to be processed: Steel | Cast metal
Cutting edge diameter: 20 mm
Cutting edge length: 32 mm
Length: 100 mm
Shank diameter: 20 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 30° (right)
Center cutting: Yes
Type: N
Construction length: Short
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,1 mm
