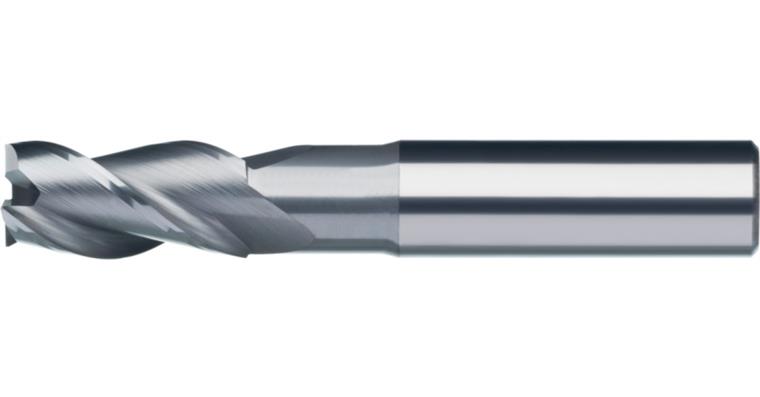

ATORN SC end mill D 10.0 x 22 x 32 x 70mm, HA shaft 3 cutting edges, ULTRA MS

ATORN SC end mill D 10.0 x 22 x 32 x 70mm, HA shaft 3 cutting edges, ULTRA MS

ATORN SC end mill D 10.0 x 22 x 32 x 70mm, HA shaft 3 cutting edges, ULTRA MS
Item no: 1016403 106

Online price:

Still in stock: 1

Application
End mill for machining stainless steel, titanium alloy, nickel and copper alloys.

Execution
  • ultra-fine grain cemented carbide
  • HA straight shank
  • with clearance
  • high-performance ULTRA MS layer
  • defined cutting edge rounding
  • centre cutting

Advantage
  • optimised, positive cutting geometry
  • optimum chip removal and temperature resistance
  • maximum service life thanks to ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Clearance length: 32 mm
Length: 70 mm
Clearance diameter: 9,2 mm
Shank diameter: 10 mm
fz stainless steel: 0,044 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 11861015

EAN no.: 4050293359398

Product Datasheet Datasheet cutting values
