ATORN end mill HSSE PM TiAlN, 12.0 mm, TYPE NR, DIN 844 short

ATORN end mill HSSE PM TiAlN, 12.0 mm, TYPE NR, DIN 844 short

ATORN end mill HSSE PM TiAlN, 12.0 mm, TYPE NR, DIN 844 short
Item no: 1016275 112

Online price:

Available for immediate delivery

Application
Roughing cutter for universal machining in a wide range of materials.

Execution
  • HSSE PM
  • TiAIN-coating for maximum service life
  • Straight shank according to DIN 1835 B
  • Type NRF
  • Fine roughing teeth


Brand: ATORN
Cutting material: HSSE-PM
Surface: TiAlN
Type: NRF
Number of cutting edges (Z): 5 PCS
Twist angle: 30°
Edge protection chamfer length: 0,2 mm
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Length: 83 mm
Shank diameter: 12 mm
fz steel 700: 0,09 mm

ATORN-No.: 11230041

EAN no.: 4050293128260

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN end mill HSSE PM TiAlN, 18.0 mm, TYPE NR, DIN 844 short
  •
    ATORN end mill HSSE PM TiAlN, 20.0 mm, TYPE NR, DIN 844 short
  •
    ATORN end mill HSSE PM TiAlN, 10.0 mm, TYPE NR, DIN 844 short
    39,27 €
  • Replacement blade E shank dia. 3.2 mm E100 HSS for steel, aluminium, plastic
  •
    Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M3
  •
    Through hole screw tap UNC DIN 371 shape B 3xD HSS-E 3/8 inch
  •
    Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiN M24
  •
    Cut protection winter glove A729 pair size 8/M
  •
    1/2 inch internal TX® impact screwdriver bit CV special steel size T 60
  •

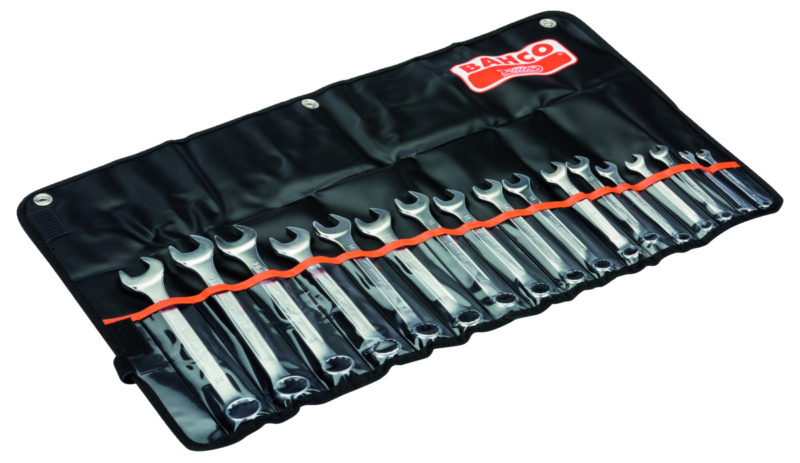

    Combination wrench set 15° DIN 3113 17 pieces AF 6-22 mm
  •
