Thread milling cutter single-edge cutter sub-profile 60° 0.25-0.35 mm 1.15 mm

Thread milling cutter single-edge cutter sub-profile 60° 0.25-0.35 mm 1.15 mm

Thread milling cutter single-edge cutter sub-profile 60° 0.25-0.35 mm 1.15 mm
Item no: 1014642 101

Online price:

Still in stock: 2

Application
For producing metric right-hand and left-hand threads on CNC machines, in steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Single-edge cutter in sub-profile design

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-quality cutting material and cutting edge finish for very high service life requirements
  • Low tool costs thanks to high variability in the thread diameter, just one tool required for right-hand thread and left-hand thread


Brand: ATORN
Min./max. pitch internal: 0.25-0.35 mm
Min./max. pitch external: 0.25-0.35 mm
Min./max. number of thread starts per inch internal: 100-72
Min./max. number of thread starts per inch external: 100-72
Cutting edge diameter: 1,15 mm
Shank diameter: 3 mm
Effective length of thread milling (l2): 3,1 mm
Length (l1): 39 mm
Coolant supply: External
Number of grooves: 3 PCS
Machining type: Inside | Outside
Number of cutting edges: 1 PCS

ATORN-No.: 11947958

EAN no.: 4050293664690

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Thread milling cutter single-edge cutter sub-profile 60° 0.35-0.45 mm 1.40 mm
  •
    Balancer with automatic lock, cable extension 2000 mm, load capacity 3-5 kg
  •
    MarCal 16 ER digital pocket vernier callipers 0-150 mm with data output
  •
    S-S finish. cutter cyl. DIN 844 B type NF short 3 cutt. edges c-cut HSS-E 16 mm
  •
    TWIST DR BIT DIN1897 D10.5MM HSS-E/ALCRN
    36,08 €
  • S-S finish. cutter cyl. DIN 844 B type NF short 3 cutt. edges c-cut HSS-E 10 mm
  •
    ATORN machine tap, HSSE, vaporised, 0°, shape B, MF11x1.0 6H
  •

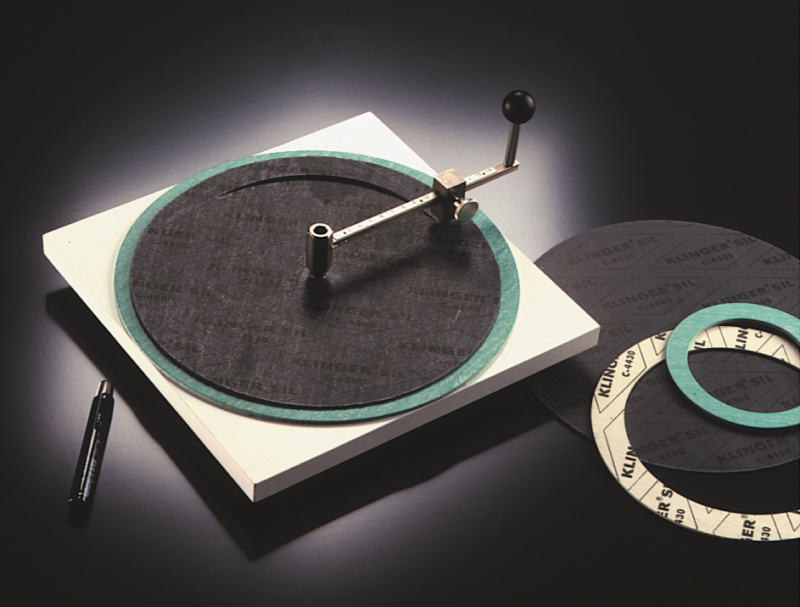

    Ring and seal cutter with cutting base for ring dia. 25–300 mm
  •
