ATORN screw tap HSSE B DIN 371 0° UNF 1/4 in 2B D 3xD CNC P

ATORN screw tap HSSE B DIN 371 0° UNF 1/4 in 2B D 3xD CNC P

ATORN screw tap HSSE B DIN 371 0° UNF 1/4 in 2B D 3xD CNC P
Item no: 1014575 104

Online price:

Available in 6-8 working days.

Application
For producing UNF (Unified Fine) threads on CNC machines or conventional machines in through holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
With reinforced shank

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-quality, torsion-resistant HSSE cutting material and cutting edge finish for very high service life requirements.
  • Universal use for maximum flexibility in use.


Brand: ATORN
Thread type: UNF
Thread type x nominal diameter in inches: UNF 1/4 in
Tolerance of screw taps (Tol.): 2B
Number of thread starts per inch: 28
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 0°
DIN: 371 similar
Shank diameter: 4,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5,5 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10483011

EAN no.: 4050293581591

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE HL, 7GX, 0 degrees, form B, M12
  • Through hole screw tap M DIN 371 shape B 2xD HSS-E-TiCN for VA steels M6
  • Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E left-cutting M3
  • Through hole screw tap MF DIN 374 shape B 2.5xD HSS-E MF18x1.50
  • ATORN machine tap, HSSE, vaporised, 0°, shape B, MF10x0.75 6H
  • Abrasive cap holder cylindrical dia. x head height 5x10 mm shaft dia. 3 mm
  • 1/2 Zoll Drehmoment-Vervielfältiger 1Z Abtrieb Übersetzg. 1:12,5 max. 2000 Nm
    3.024,28 €
  • ROTATING MAGNETIC HOOK FTNT-25 H=15 MM 5 PCS
  • Soft PVC support 1200x750x3 mm crystal-clear transparent
  • Soft PVC support 1500x750x3 mm crystal-clear transparent
  • Soft PVC support 2500x750x3 mm crystal-clear transparent

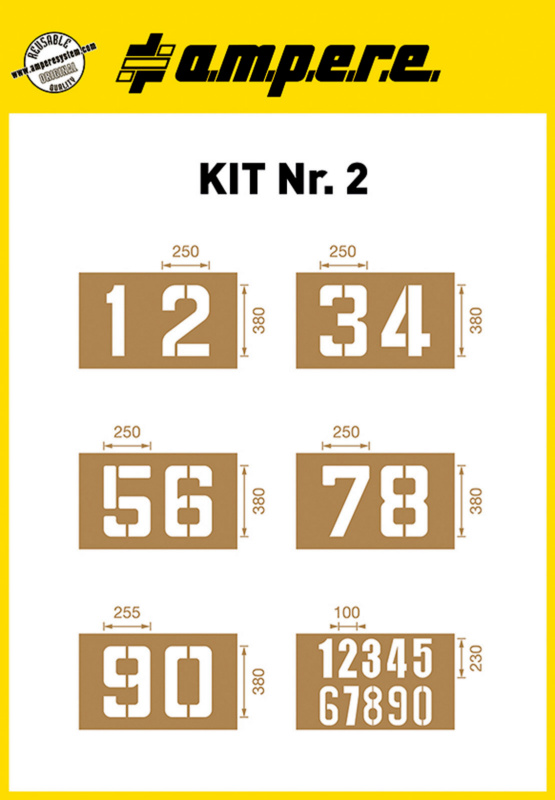

  • Template set KIT No. 2 6 templates with numbers
