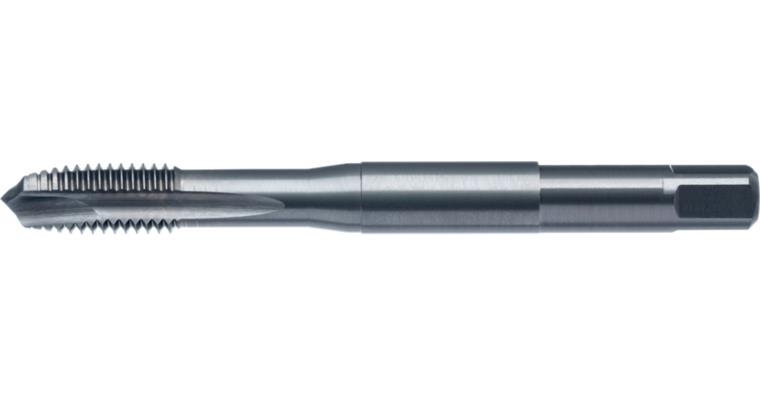

ATORN screw tap HSSE DIN 371 0° shape C M10 6H, Uni MAX 45 Polygon

ATORN screw tap HSSE DIN 371 0° shape C M10 6H, Uni MAX 45 Polygon

ATORN screw tap HSSE DIN 371 0° shape C M10 6H, Uni MAX 45 Polygon
Item no: 1014533 110

Online price:

Available in 6-8 working days.

Application
Specially designed for thread cutting in manual operation with high service life requirements.

Advantage
Suitable for universal use with polygon shanks in cordless drills, drills or tapping chucks. Full power transmission


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M10
Hole type: Clearance/blind hole ≤ 3xD
Lead angle shape: B
Length: 100 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,5 mm
Twist angle: 0°
Shank diameter: 10 mm
Core hole diameter: 8,5 mm
Type: Uni MAX 45 Polygon
Coolant supply: External
Shank square: 8 mm
Overall stainless steel suitability (ISO M): 0
fitness not iron total (ISO N): 0
fitness Titan/Nickel/Super total (ISO S): 0

ATORN-No.: 10487492

EAN no.: 4066107017774

Product Datasheet
