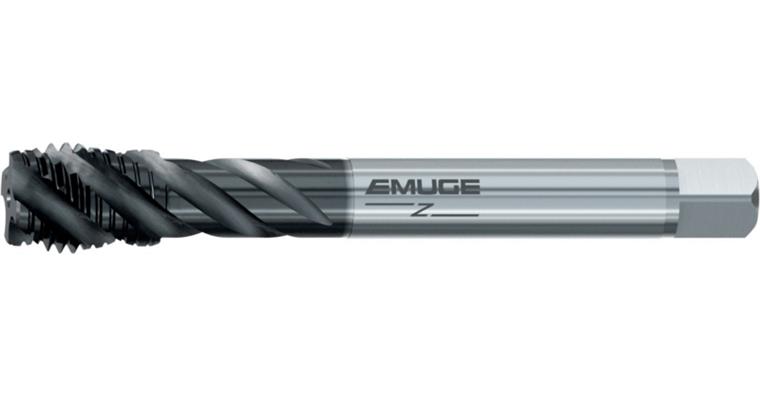

Maschinen-Gewindebohrer Enorm 2-Z/E-X-PM-GLT-1 M14x1,5-6HX

Maschinen-Gewindebohrer Enorm 2-Z/E-X-PM-GLT-1 M14x1,5-6HX

Maschinen-Gewindebohrer Enorm 2-Z/E-X-PM-GLT-1 M14x1,5-6HX
Item no: 1014523 110

Online price:

Still in stock: 3

Application
- Metrisches Feingewinde
- Grundlöcher
- Max. Bohrtiefe 3xD
- Für universelle Anwendung in nahezu allen Werkstoffen

Execution
  • Für den Einsatz in CNC-gesteuerten Maschinen ausgelegt.
  • Erhöhte Toleranz für mehr Standweg in abrasiven oder klemmenden Werkstoffen.
  • Konisch abgesetztes Führungsgewinde
  • Längere Nuten
  • DIN-Anschnitt Form E (1,5-2 Gänge)
  • HSSE-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Thread type x nominal diameter: MF14
Max. thread depth: 3xD
Thread dimension: M14
Pitch: 1,50 mm
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Blind hole ≤ 3xD
Tolerance of screw taps (Tol.): 6HX
Lead angle shape: E
Length: 100 mm
Cutting edge length: 15 mm
Core hole diameter: 12,50 mm
Shank diameter: 11,0 mm
Shank square: 9,0 mm
Thread type: Metric fine thread
Type: GLT-1
Twist angle: 45° (right)
DIN: 374
Nominal diameter: 14 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: C582A601.0331

Product Datasheet Datasheet cutting values
