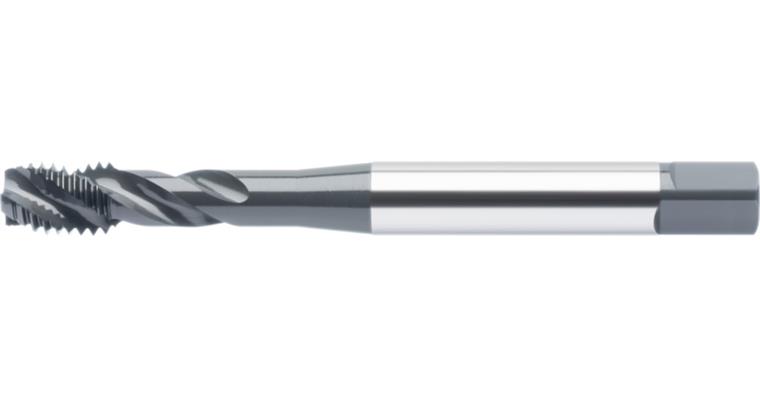

ATORN screw tap HSSE V3 vaporised C 40° M8 1.25 ISO2 3xD CNC, 6.2 mm

ATORN screw tap HSSE V3 vaporised C 40° M8 1.25 ISO2 3xD CNC, 6.2 mm

ATORN screw tap HSSE V3 vaporised C 40° M8 1.25 ISO2 3xD CNC, 6.2 mm
Item no: 1014431 108

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast material groups up to a strength of 1200 N/mm²

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M8
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 90 mm
Cutting material: HSSE V3
Surface: Vaporised
Pitch: 1,25 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 6,8 mm
Type: UNI MAX 40 Control
Coolant supply: External
Shank square: 6,2 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280137

EAN no.: 4050293425710

Product Datasheet Datasheet cutting values
