Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M10

Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M10

Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M10
Item no: 1014394 110

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Blind holes
- Max. drilling depth 2xD
- Steels up to 1,000 N/mm²

Execution
  • With enlarged chip area
  • Excellent emergency running properties and the most rigorous standards in terms of performance due to special TiCN coating
  • Tolerance range 6H
  • DIN 371/DIN 376
  • Right-hand spiral grooves approx. 15°
  • DIN type C (2-3 chamfer threads)
  • HSSE, TiCN-coated


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M10
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE
Surface: TiCN
Pitch: 1,5 mm
Twist angle: 15° (right)
DIN: 371
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,50 mm
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290285

EAN no.: 4050293133141

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN machine thread former HSSE TiN DIN 371 M10 x 1.5 mm 6 HX
    87,93 €
  • ATORN screw tap HSSE vap. B 371 0° M3 0.5 mm ISO2 D 3xD CNC UNI
  •
    Blind hole screw tap M uni DIN 371 45° shape C 2.5xD PM-TiCN M6
    28,88 €
  • ATORN hexagon screwdriver 5.0 mm, nickel-plated, DIN 2936
  •
    Quick-action drill chuck Supra threaded chuck 1/2 inch x 20 0.5-10 mm
  •
    Machine tap M Synchro DIN 371 45° shape C 2.0xD HSS-E-PM-TiCN M8
    46,82 €
  • Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 2 6g
  •
    Hand tap DIN 352 F third tap HSS-E M5
  •
    ATORN screw tap HSSE-PM ULTRA HL form B DIN 376 0° M10 ISO2
  •

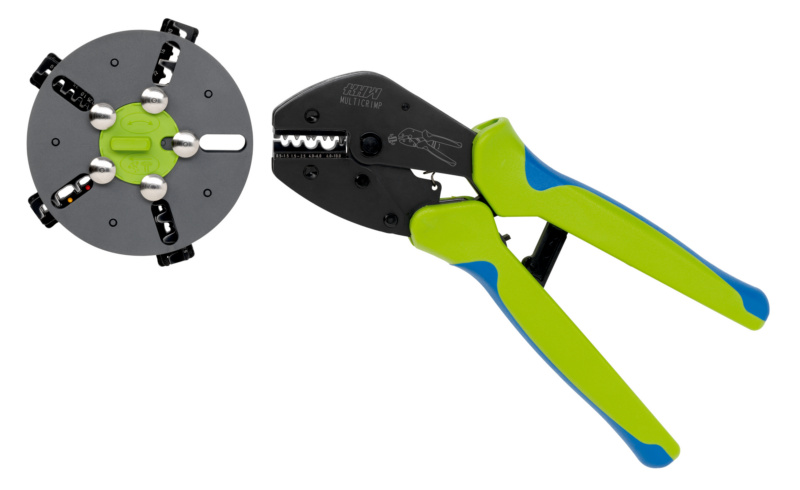

    Crimping pliers for wire end ferrules, crimping range 0.25-2.5 mm2
