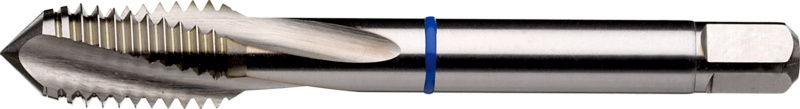

Through hole screw tap M DIN 376 shape C 2xD HSS-E nit. for grey cast iron M20

Through hole screw tap M DIN 376 shape C 2xD HSS-E nit. for grey cast iron M20

Through hole screw tap M DIN 376 shape C 2xD HSS-E nit. for grey cast iron M20
Item no: 1014358 120

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Through holes
- Max. drilling depth 2xD
- For high cutting performance in grey cast iron

Execution
  • Without spiral point tap
  • For high cutting performance
  • Tolerance range 6HX
  • DIN 371/376
  • HSSE, nitrided


Brand: ATORN
Material to be processed: Cast metal
Thread type: Metric thread
Thread dimension: M20
Thread type x nominal diameter: M20
Tolerance of screw taps (Tol.): 6HX
Hole type: Clearance hole ≤ 2xD
Lead angle shape: C
Length: 140 mm
Cutting material: HSSE
Surface: Nitrated
Pitch: 2,5 mm
Twist angle: 0°
DIN: 376
Shank diameter: 16 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 17,50 mm
Coolant supply: External
Shank square: 12 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290190

EAN no.: 4050293132496

Product Datasheet Datasheet cutting values
