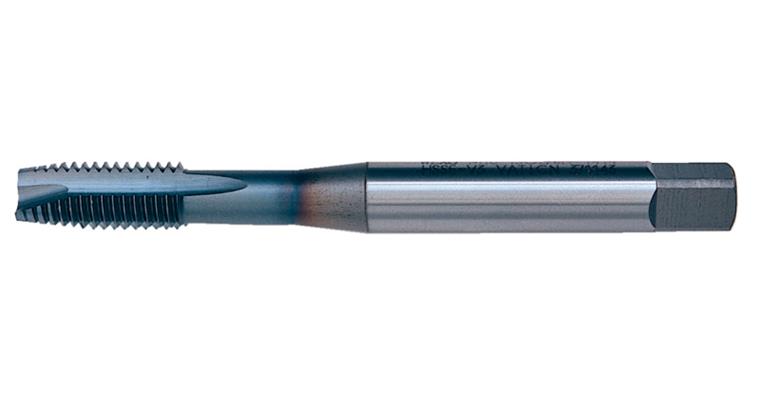

Through hole screw tap M DIN 371 type B 2xD HSS-E-TiCN for VA steels M5

Through hole screw tap M DIN 371 type B 2xD HSS-E-TiCN for VA steels M5

Through hole screw tap M DIN 371 type B 2xD HSS-E-TiCN for VA steels M5
Item no: 1014333 205

Online price:

Available for immediate delivery

Application
Metric thread
Through holes
Max. drilling depth 2xD
VA steels up to 1,000 N/mm2

Execution
Spiral point

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M5
Max. thread depth: 2xD
Pitch: 0,8 mm
Cutting material: HSSE
Surface: TiCN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 70 mm
Cutting edge length: 14 mm
Core hole diameter: 4,20 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 5 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
