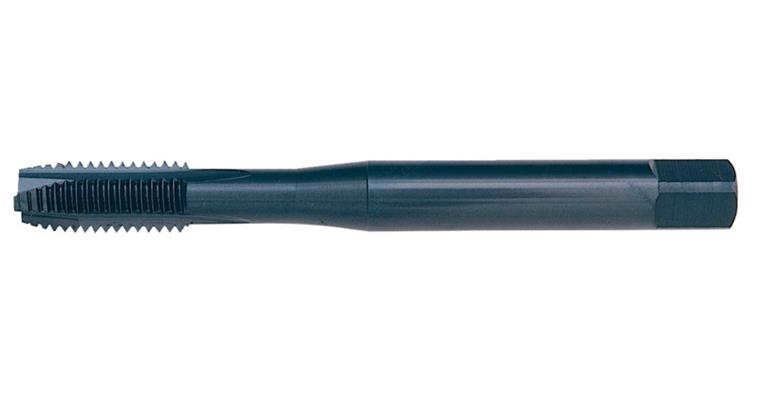

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M 10

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M 10

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M 10
Item no: 1014306 206

Online price:

Still in stock: 8

Application
- Metric thread
- Through holes
- Max. drilling depth 1.5xD
- Steels up to 800 N/mm²
- Special OX coating for soft and lubricating steels (St33/St37)

Execution
  • Spiral point
  • Tolerance field 6H
  • DIN 371
  • DIN chamfer shape B (3.5-5 turns)
  • HSS-E OX


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M10
Max. thread depth: 1.5xD
Thread dimension: M10
Pitch: 1,5 mm
Cutting material: HSSE
Surface: Vaporised
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 100 mm
Cutting edge length: 24 mm
Core hole diameter: 8,50 mm
Shank diameter: 10 mm
Shank square: 8 mm
Thread type: Metric thread
Type: OX
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 10 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

EAN no.: 4024496021024

Product Datasheet
