Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN M6

Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN M6

Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN M6
Item no: 1014293 106

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 850 N/mm2

Execution
  • Spiral point tap
  • Tolerance range 6H
  • DIN 371/DIN 376
  • DIN type B (3.5-5 chamfer threads)
  • HSSE

Advantage
Reduced buildup of material deposits due to TiN coating


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M6
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: Conventional | CNC
Core hole diameter: 5,00 mm
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290044

EAN no.: 4050293131529

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN M5
  •
    Trousers PULSSCHLAG Low black/cornflower blue size 54
  •
    ATORN ratchet combination wrench, 36 mm, angled 15°, reversing lever
    111,07 €
  • ATORN SC mini torus mill cttr TiAlSiN 2x2x60 mm clearance 1.91x20 mm R 0.2 mm
  •

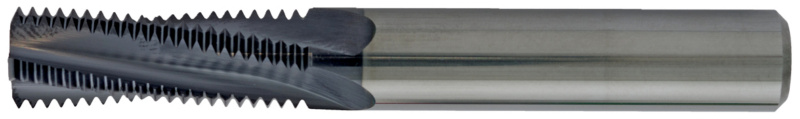

    ATORN thread milling cutter SC-TIALN MF18 1 mm pitch 2.5xD 16.0mm
  •
    ATORN screw tap HSSE V3 vaporised B 0° M6 1 mm ISO2 3xD CNC UNI
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-TiN M8
  •
    Through hole screw tap M DIN 371 shape B 1.5xD HSS-E M8
  •
    Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M4
    20,28 €
  • Through hole screw tap M DIN 376 shape B 3xD HSS-E M27
  •

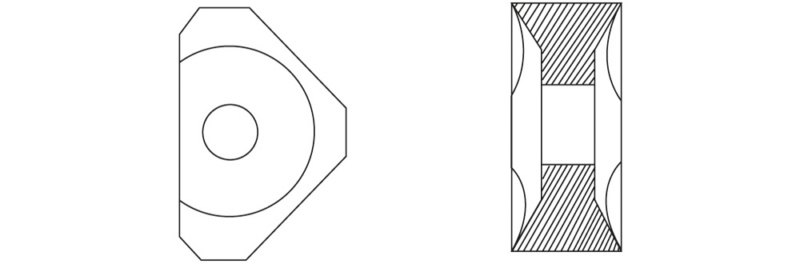

    Ceramic abrasives, triang., (diagonal cut), DZS 10/10 mm, grey, container 25 kg
  •
