Rivet hole reamer DIN 311 spiral-fluted HSS 16 mm

Rivet hole reamer DIN 311 spiral-fluted HSS 16 mm

Rivet hole reamer DIN 311 spiral-fluted HSS 16 mm
Item no: 1013450 111

Online price:

Still in stock: 6

Application
For reaming offset holes opposite each other that must be bolted or riveted together.

Execution
  • With Morse taper shank
  • Right-cutting
  • Anticlockwise spiral approx. 25°
  • Arched tooth back
  • Cutting length, 1/3 tapered, 2/3 straight


Brand: LIZZARD
Min./max. cutting edge diameter: 11.2-16 mm
Tolerance of cutting edge diameter: k10
Groove type: Left-hand twist, 25°
Morse taper size: MK 2
Length: 229 mm
Cutting edge length: 135 mm
Shank style: Morse taper
Cutting material: HSS
Min. diameter: 4,5 mm
Max. diameter: 31,0 mm
f steel 1000: 0,2 mm/r
Coolant supply: External
Cutting direction: Right-hand cutting
DIN: 311
Surface: Vaporised

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC torus milling cutter, short blade dia. 3.0x4x14x60 mm r0.3 T=4 RT52
  •
    ATORN SC torus milling cutter, short blade dia. 6.0x7x20x60 mm r0.5 T=4 RT52
  •
    Precision 3-point internal micrometer IMICRO MR 10-12 mm
  •
    Precision 3-point internal micrometer IMICRO MR 14-17 mm
  •
    Precision 3-point internal micrometer IMICRO MR 25-30 mm
  •
    Precision 3-point internal micrometer IMICRO MR 40-50 mm
  •
    Precision 3-point internal micrometer IMICRO MR 80-90 mm
  •
    Precision 3-point internal micrometer IMICRO MR 90-100 mm
  •
    VT Digi Pro digital multi-function tester 1-1,000 volts
  •

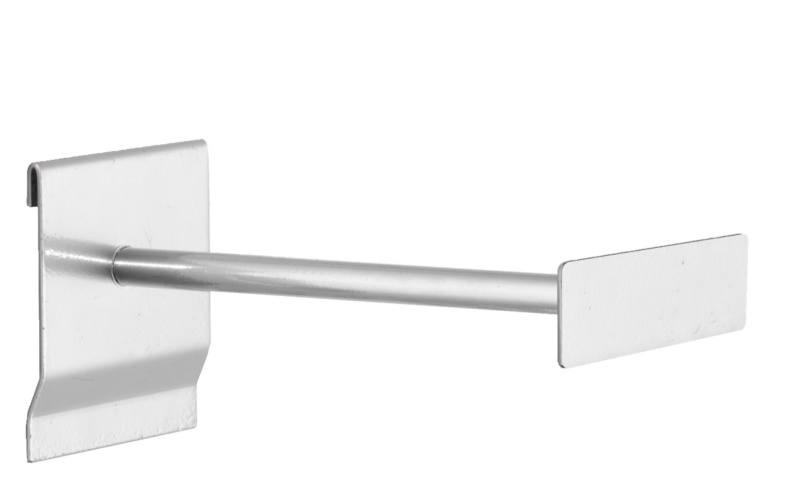

    Universal holder with labelling field 200 mm, dia. mm: 12
  •
