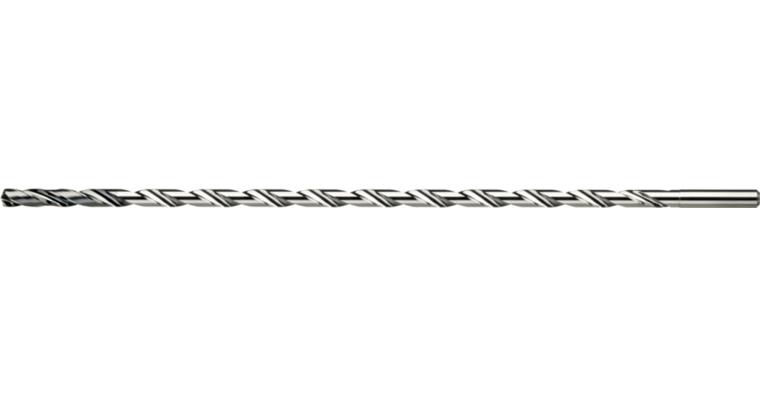

ATORN high-perf. drill, SC TiAlN, HPC 30xD 7.5 mm x 8 mm x 280 mm HA internal

ATORN high-perf. drill, SC TiAlN, HPC 30xD 7.5 mm x 8 mm x 280 mm HA internal

ATORN high-perf. drill, SC TiAlN, HPC 30xD 7.5 mm x 8 mm x 280 mm HA internal
Item no: 1011095 126

Online price:

Available in 5-7 working days.

Application
For HPC deep-hole boring up to a strength of 1300 N/mm².

Execution
  • High-performance deep hole drill, solid carbide TiAlN
  • 4 drill heels
  • Four grinding faces
  • 30° spiral angle
  • Straight main cutting edge

Advantage
  • very good all-round properties and precise cutting performance with high cutting rates
  • unique, extremely hard, low-friction, temperature-resistant and form-fitting TiAlN coating ensures a longer service life
  • Cutting edge preparation minimises micro-fractures on the cutter
  • the entire range is coordinated in terms of angle and diameter


Brand: ATORN
Material to be processed: Universal use
Cutting edge diameter: 7,5 mm
Tolerance of cutting edge diameter: h7
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 30xD
Type: HPC UNI
Coolant supply: Internal
Tool holding device: HA parallel shank
Angle of the tip: 135 Degree
Shank diameter: 8 mm
Chip flute length: 230 mm
Length: 280 mm
f steel 1000: 0,12 mm/r
DIN: 0 - not applicable

ATORN-No.: 10912789

EAN no.: 4050293387124

Product Datasheet Datasheet cutting values
