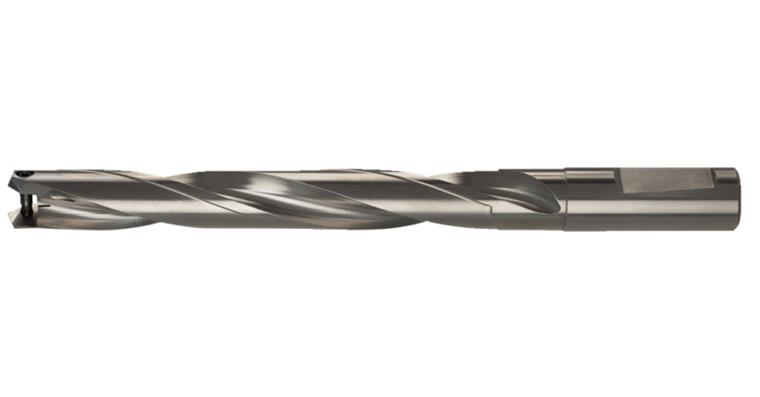

Multiplex HPC holder 7xD size 255 for drilling range dia. 25.50–25.99 mm

Multiplex HPC holder 7xD size 255 for drilling range dia. 25.50–25.99 mm

Multiplex HPC holder 7xD size 255 for drilling range dia. 25.50–25.99 mm
Item no: 1010643 129

Online price:

Available in 6-8 working days.

Execution
  • Long service life due to wear-resistant indexable inserts
  • Optimised chip removal
  • Highly accurate and stable insert seat
  • Perfect lubrication
  • Large selection of indexable inserts

Advantage
Drilling tool also suitable for stack drilling

Delivery
Reversible tip holder and indexable insert including clamping screw

Notes
For drilling depths from 5xD we recommend centring or making a pilot hole. When drilling without centring – reduce feed by approx. 50%. In the case of through-bores, the feed is to be reduced in the event of breakthrough.

Brand: HARTNER
Cutting material: HSCo-PM
Max. drilling depth (D): 7xD
Surface: Coated
Angle of the tip: 130 Degree
Shank diameter (d2 h6): 32 mm
Length (l1): 291 mm
Chip flute length (l2): 186,9 mm
Number of cutting edges: 2
Tolerance of shank diameter: h6
Shaft length (l3): 60 mm
Shank style: Cylindrical DIN 6535-HB
Size: 255

Manufacturer part no.: 86685 25,500

EAN no.: 4031096234907

Product Datasheet
