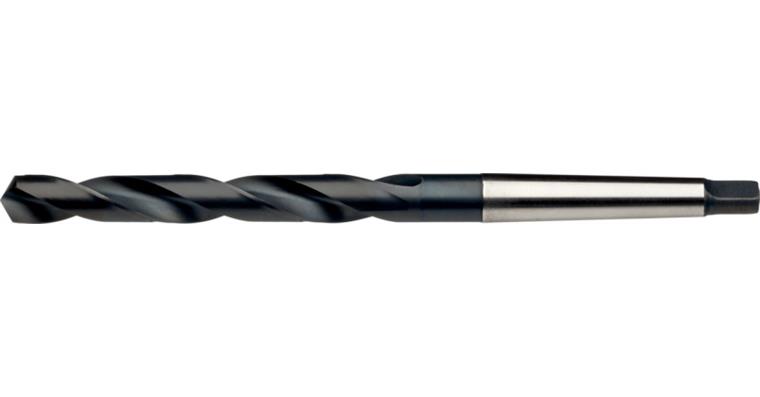

ATORN twist drill bit HSS DIN 345N type N MK diameter 33.50 mm

ATORN twist drill bit HSS DIN 345N type N MK diameter 33.50 mm

ATORN twist drill bit HSS DIN 345N type N MK diameter 33.50 mm
Item no: 1010508 720

Online price:

Still in stock: 1

Application
Standard geometry for universal use up to 1000 N/mm².

Execution
Twist drill with universal standard geometry

Advantage
  • excellent all-round properties and precise cutting pattern
  • universal use: minimises tool costs and improves flexibility
  • Steam treatment ensures favourable adherence of coolant


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSS
Surface: Vaporised
Type: N
Angle of the tip: 118 Degree
DIN: 345
Tool holding device: Morse taper shank
Cutting edge diameter: 33,5 mm
Chip flute length: 185 mm
Length: 334 mm
Morse taper size: MK 4
f steel 700: 0,39 mm/r

ATORN-No.: 10478538

EAN no.: 4050293585841

Product Datasheet Datasheet cutting values
