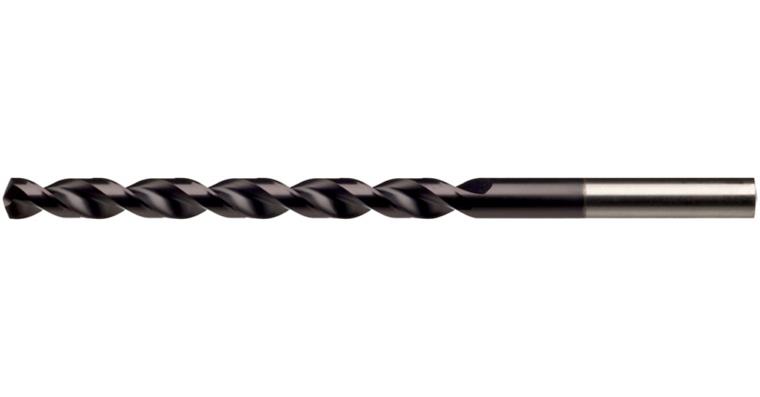

ATORN twist drill TLP HSSE-TiAlN, DIN 340, 10.5 mm x 184 mm x 121 mm, 130°

ATORN twist drill TLP HSSE-TiAlN, DIN 340, 10.5 mm x 184 mm x 121 mm, 130°

ATORN twist drill TLP HSSE-TiAlN, DIN 340, 10.5 mm x 184 mm x 121 mm, 130°
Item no: 1010412 205

Online price:

Available for immediate delivery

Application
Geometry with deep-hole profile for application up to a strength of 1300 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile to optimise chip removal at greater drilling depths without venting
  • TiAlN coating for increased service life requirements
  • effective removal of chips thanks to large chipping spaces

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)

Notes
Chamfer-nitrated >2.36

Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Surface: TiAlN
Type: TLP
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 10,5 mm
Angle of the tip: 130 Degree
Chip flute length: 121 mm
Length: 184 mm
f steel 700: 0,16 mm/r
DIN: 340

ATORN-No.: 10472316

EAN no.: 4050293032413

Product Datasheet Datasheet cutting values
