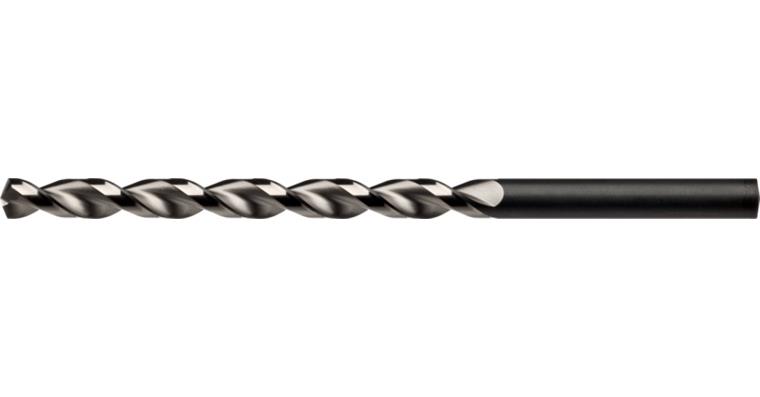

ATORN twist drill TLP HSSE, DIN 340, 8.5 mm x 165 mm x 109 mm, 130°

ATORN twist drill TLP HSSE, DIN 340, 8.5 mm x 165 mm x 109 mm, 130°

ATORN twist drill TLP HSSE, DIN 340, 8.5 mm x 165 mm x 109 mm, 130°
Item no: 1010411 185

Online price:

Available for immediate delivery

Application
Geometry with deep-hole profile for application up to a strength of 1300 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile to optimise chip removal at greater drilling depths without venting
  • Effective chip evacuation thanks to large chip rooms

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)

Notes
Chamfer-nitrated >2.36

Brand: ATORN
Material to be processed: Universal use
Cutting edge diameter: 8,5 mm
Length: 165 mm
Chip flute length: 109 mm
Angle of the tip: 130 Degree
Cutting material: HSSE
Surface: Uncoated
Tool holding device: HA parallel shank
Type: TLP
DIN: 340
f steel 700: 0,15 mm/r
Self-centring: Yes

ATORN-No.: 10472173

EAN no.: 4050293031263

Product Datasheet Datasheet cutting values
