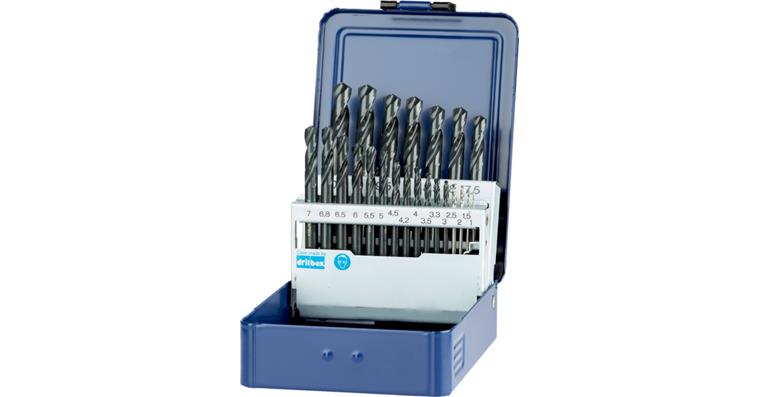

ATORN twist drill bit set N HSS DIN 1897 1.0-10.2 mm 0.5 in box

ATORN twist drill bit set N HSS DIN 1897 1.0-10.2 mm 0.5 in box

ATORN twist drill bit set N HSS DIN 1897 1.0-10.2 mm 0.5 in box
Item no: 1010252 901

Online price:

Available for immediate delivery

Application
Proven standard geometry for universal use in the material groups of steel, non-ferrous metals and cast metal up to a strength of 1000 N/mm².

Execution
Twist drill with universal standard geometry

Advantage
  • long-term proven cutting geometry: excellent all-round properties and precise cutting behaviour
  • universal use up to a strength of 1000 N/mm²
  • steam treatment ensures good adhesion to the drill and increases the service life
  • the robust and user-friendly metal box guarantees reliable protection and easy access


Brand: ATORN
Material to be processed: Steel
Included in delivery: 1.0-10.0 mm
Pitch of drill diameter: 0.5 mm + core-hole drill
Number of pieces in assortment/set: 23 PCS
Surface: Vaporised
Cutting material: HSS
Type: N
DIN: 1897

ATORN-No.: 10471896

EAN no.: 4050293028539

Product Datasheet Datasheet cutting values
