Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 10.2 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 10.2 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 10.2 mm
Item no: 1010217 092

Online price:

Available in 6-8 working days.

Application
For reliable and cost-effective drilling on CNC machines, universal application up to 1200 N/mm².

Execution
  • Straight shank
  • Right-cutting
  • Helix angle 31–32°
  • Thinned chisel edge

Notes
Use only high-precision tool holders.

Brand: NACHI
Min. f in special alloys: 0,160 mm/r
Material to be processed: Universal use
Cutting edge diameter: 10,2 mm
Length: 144 mm
Chip flute length: 87 mm
Max. drilling depth (D): 5xD
Angle of the tip: 135 Degree
Cutting material: HSS-PM
Surface: TiCN
Tool holding device: Cylinder shank
Type: SG-ESR
DIN: 338
Coolant supply: External
Number of cutting edges: 2 PCS
Shank diameter: 12 mm
Min. f in non-ferrous metals: 0,330 mm/r
Max. f in non-ferrous metals: 0,330 mm/r
f steel 1000: 0,23 mm/r
Min. f in steel: 0,260 mm/r
Max. f in steel: 0,215 mm/r
Min. f in stainless steel: 0,160 mm/r
Max. f in stainless steel: 0,190 mm/r
Min. f in cast iron: 0,330 mm/r
Max. f in cast iron: 0,330 mm/r
Max. f in special alloys: 0,160 mm/r

Manufacturer part no.: L7574 10,2

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Twist drill bit HSS-PM SG-coated 118° tip angle 3xD dia. 0.75 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.18 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.27 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 6.20 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 8.3 mm
  •
    ATORN countersink set, 90°, HSSE, unequal spiral pitch 6.3-20.5 mm
  •
    Hand tap DIN 2181 F third tap HSS MF 30x1.5
  •
    ATORN RockTec PRO mini end mill, long neck 2x3x35x80 mm T=2 HA
  •
    ATORN 90° angular milling cutter tangential diameter 80.0 mm teeth 10, 8-way
  •

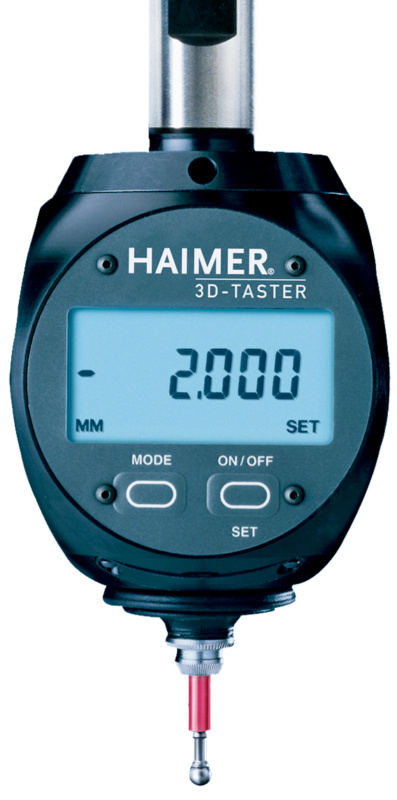

    Digital 3D probe IP 67 acc. 0.001 mm, dust and splash water-protected.
  •
