Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.11 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.11 mm

Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.11 mm
Item no: 1010216 371

Online price:

Available in 6-8 working days.

Application
For process-reliable and cost-effective drilling on CNC machines. For universal use.

Execution
  • Straight shank
  • Right-cutting
  • Helix angle 26–33°
  • dia. < 1.4 mm tip angle 118°, dia. > 1.4 mm tip angle 135°
  • dia. < 1.4 mm with thinned chisel edge
  • High-quality HSS-PM, ground, for steel up to 1,200 N/mm²
  • SG coating (TiCN multi-layer coating)

Notes
Note the respective length/diameter ratio of the bore diameter and the flute length. Use only high-precision tool chucks!

Brand: NACHI
Min. f in special alloys: 0,070 mm/r
Material to be processed: Universal use
Cutting edge diameter: 4,11 mm
Length: 66 mm
Chip flute length: 22 mm
Max. drilling depth (D): 3xD
Angle of the tip: 135 Degree
Cutting material: HSSE-PM
Surface: TiCN
Tool holding device: Cylinder shank
Type: SG-ESS
DIN: 1897
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Shank diameter: 6 mm
Min. f in non-ferrous metals: 0,180 mm/r
Max. f in non-ferrous metals: 0,180 mm/r
f steel 1000: 0,12 mm/r
Min. f in steel: 0,110 mm/r
Max. f in steel: 0,140 mm/r
Min. f in stainless steel: 0,088 mm/r
Max. f in stainless steel: 0,088 mm/r
Min. f in cast iron: 0,180 mm/r
Max. f in cast iron: 0,180 mm/r
Max. f in special alloys: 0,070 mm/r

Manufacturer part no.: L7572 4,11

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN shell end mill, PM, type N, uncoated, Ø 80.0 x 45 x 27
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 1.75 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 2.40 mm
    13,45 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 2.73 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 3.68 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 5.39 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 5.73 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 6.00 mm
    28,59 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 11.1 mm
  •
    ATORN solid carbide twist drill bit type N 5xD 8.1 mm x 117 mm 118°
  •

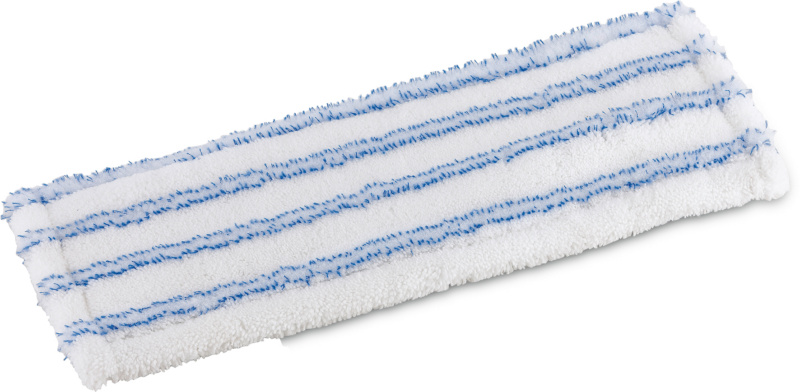

    Microfibre wipe, 40 cm wide for mop holder art. no. 66541 101
  •
