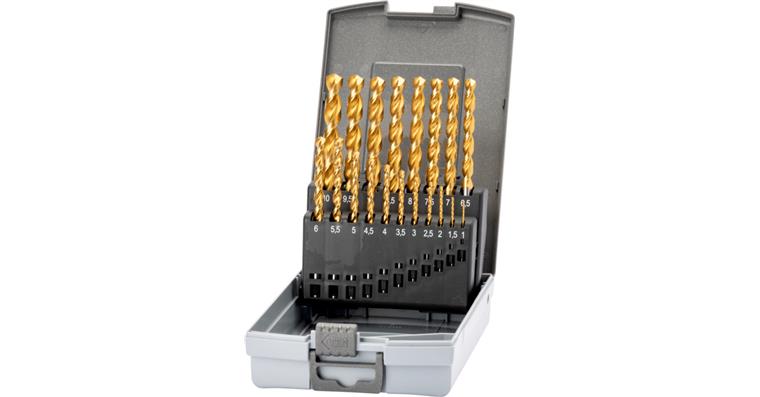

ATORN twist drill bit set TLP HSSE-TIN DIN 338 1.0-10.0 mm 0.5 in box

ATORN twist drill bit set TLP HSSE-TIN DIN 338 1.0-10.0 mm 0.5 in box

ATORN twist drill bit set TLP HSSE-TIN DIN 338 1.0-10.0 mm 0.5 in box
Item no: 1010053 902

Online price:

Available in 6-8 working days.

Application
Special geometry with deep-hole profile for long-chipping materials, for use with the material groups of steel, (stainless steel), non-ferrous metals, cast iron and special alloys up to a strength of 1300 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • special cutting geometry for long-chipping materials: excellent chip removal due to large chip space. Deep-hole profile to optimise chip removal at greater drilling depths without venting
  • TiN coating for increased requirements in service life
  • Robust and user-friendly plastic box ensures reliable protection and good accessibility


Brand: ATORN
Material to be processed: Universal use
Included in delivery: 1.0-10.0 mm
Pitch of drill diameter: 0.5 mm
Number of pieces in assortment/set: 19 PCS
Surface: TiN
Cutting material: HSSE
Type: TLP
DIN: 338

ATORN-No.: 10471826

EAN no.: 4050293027839

Product Datasheet
