Short twist drill bit DIN 338 type FS HSS-E+TiN, 2.0 mm

Short twist drill bit DIN 338 type FS HSS-E+TiN, 2.0 mm

Short twist drill bit DIN 338 type FS HSS-E+TiN, 2.0 mm
Item no: 1010053 120

Online price:

Available for immediate delivery

Application
For even higher machining performance.

Execution
  • Straight shank
  • Right-cutting
  • Cone polished section
  • Thinned chisel edge
  • High concentricity
  • Precise point geometry
  • Chamfer-nitrided from 2 mm
  • Wide chip flutes and rounded rear edges for optimum chip removal

Advantage
Quality drills for the most demanding applications.

Notes
Drills for production.

Brand: ATORN
Material to be processed: Universal use
Cutting edge diameter: 2 mm
Length: 49 mm
Chip flute length: 24 mm
Max. drilling depth (D): 5xD
Angle of the tip: 130 Degree
Cutting material: HSSE
Surface: TiN
Tool holding device: Cylinder shank
Type: FS
DIN: 338
Coolant supply: External
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Shank diameter: 2,0 mm
Tolerance of shank diameter: h8
f steel 700: 0,03 mm/r

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Ctrsk drill + ctrsk debur. tool 90° w/ strt shank 3 cut edges HSS dia. 10.4 mm
  •

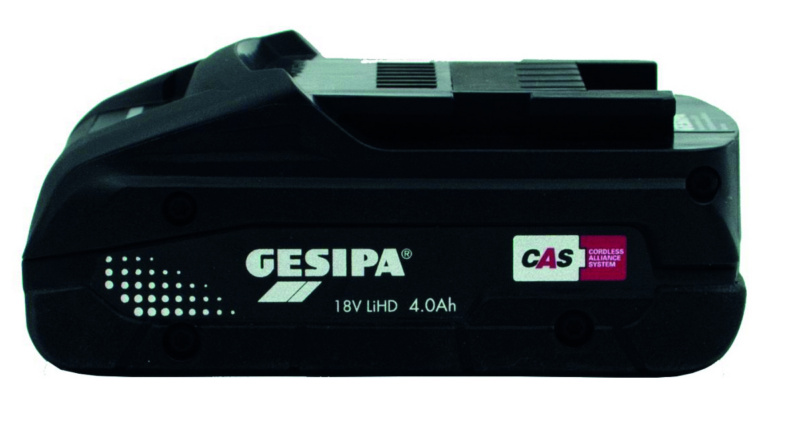

    Ersatz-Akku LI-ION 18V 4,0AH CAS
  •

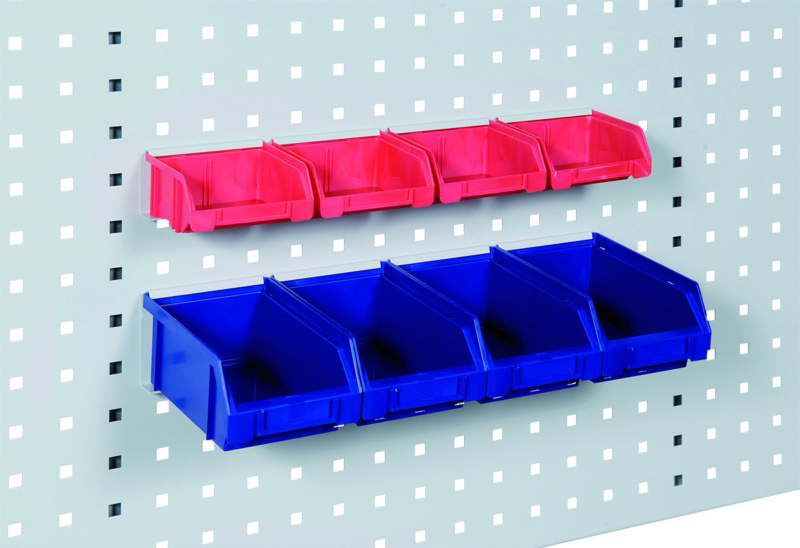

    Hook-in bar W420 mm RAL7035
  •
