ATORN screw tap HSSE TiN C 371 40° M8 1.25 mm ISO2 S 2.5xD CNC P

ATORN screw tap HSSE TiN C 371 40° M8 1.25 mm ISO2 S 2.5xD CNC P

ATORN screw tap HSSE TiN C 371 40° M8 1.25 mm ISO2 S 2.5xD CNC P
Item no: 1003141 191

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
Long service life and high level of process reliability thanks to innovative cutter geometry and coating and universal application for maximum flexibility in use


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M8
Tolerance of screw taps (Tol.): ISO 2 (6H)

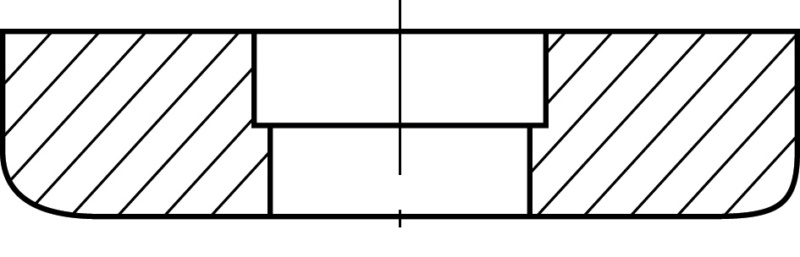

Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 90 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1,25 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 6,8 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 6,2 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470945

EAN no.: 4050293019681

Product Datasheet Datasheet cutting values
